Vanquish H10 Optic Kit 1:10 ohne Elektronik

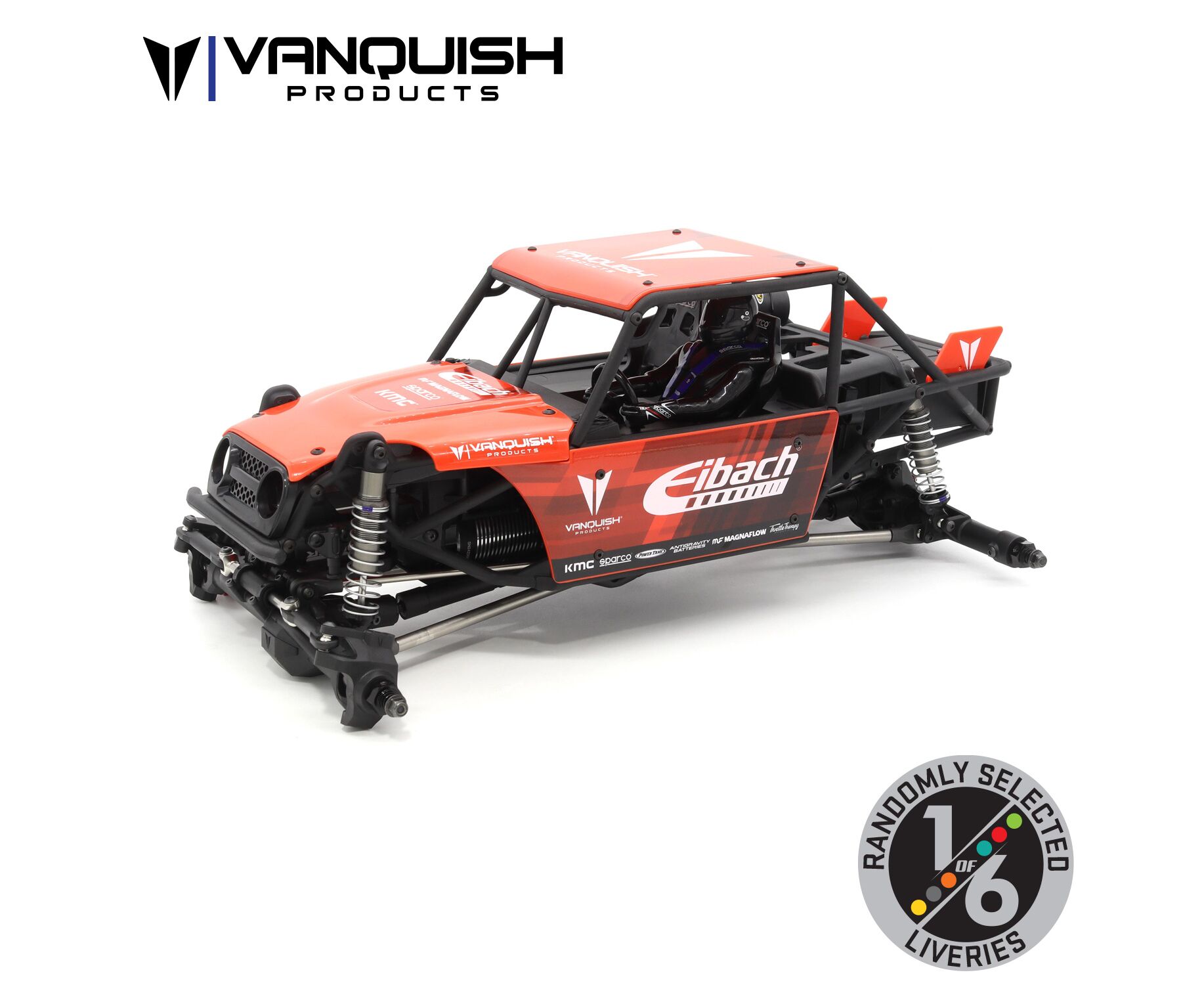

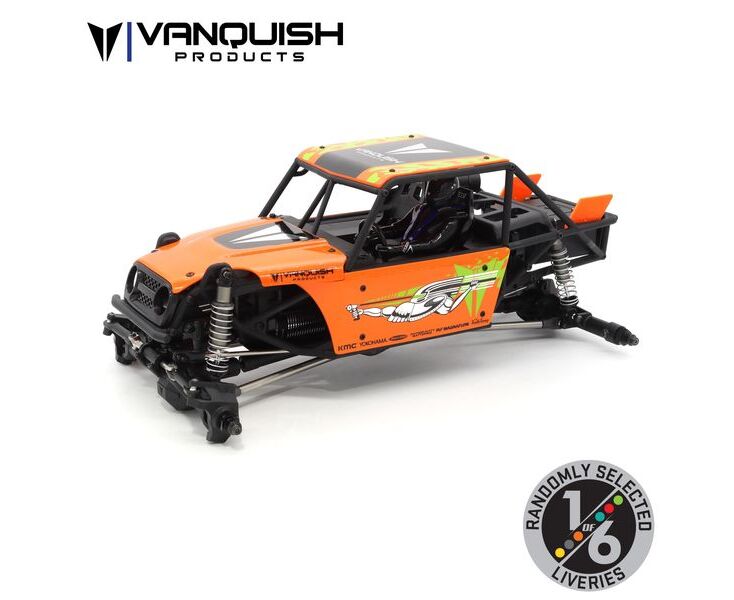

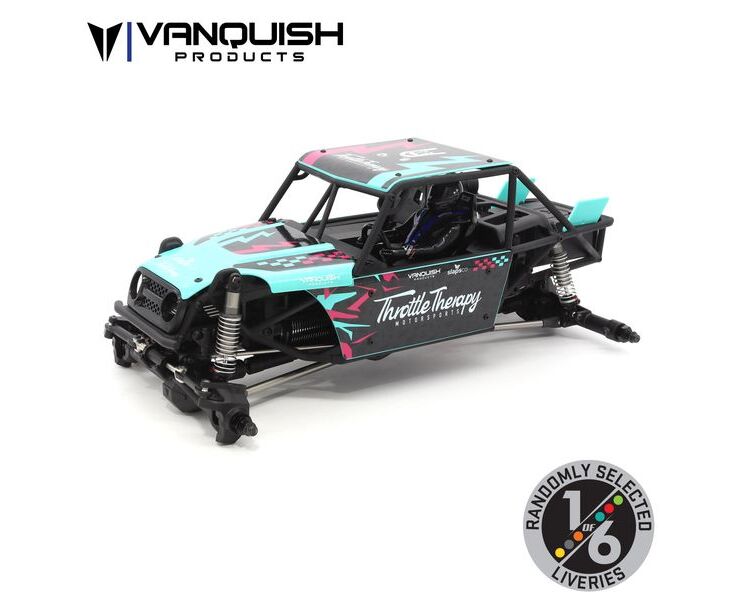

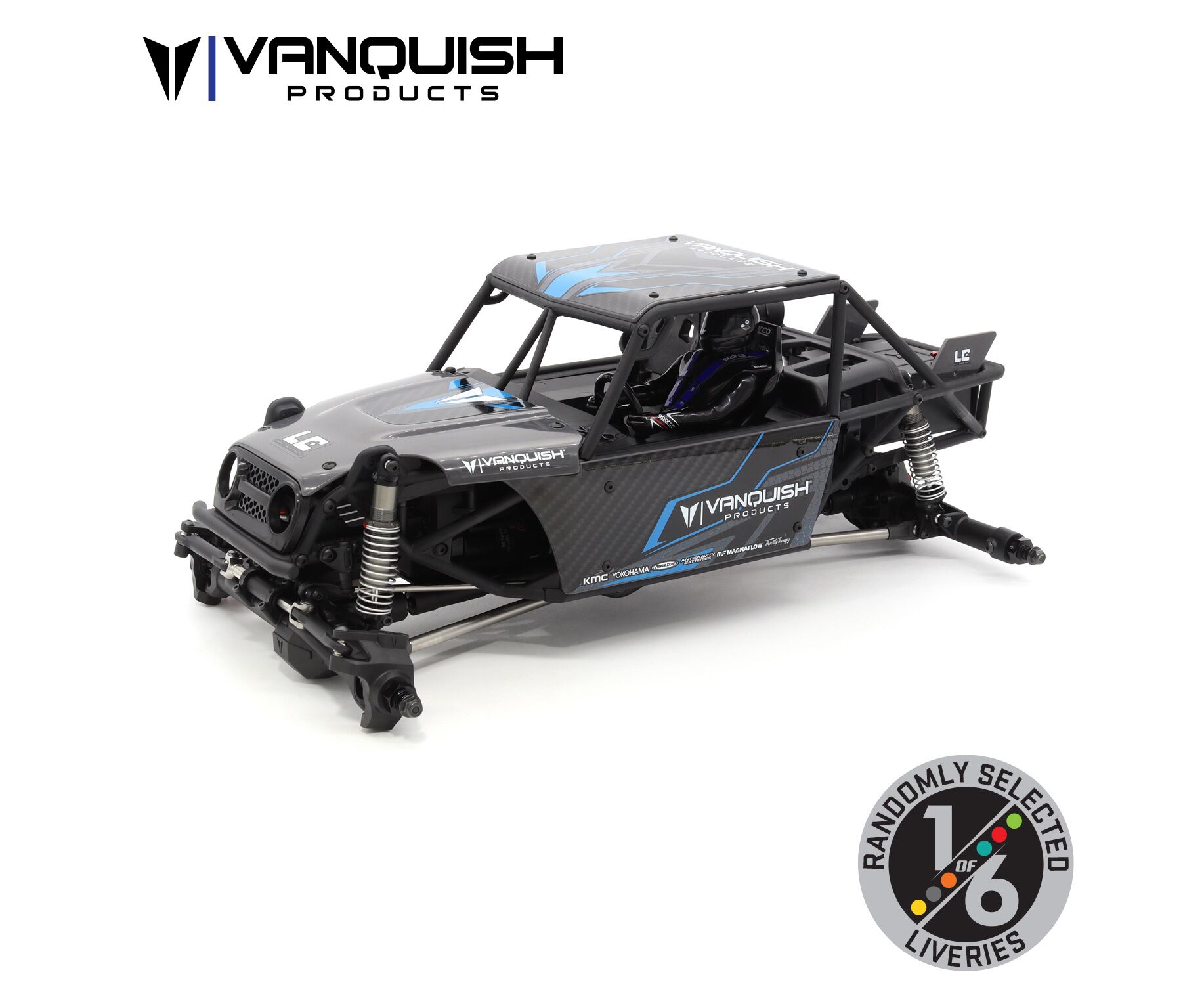

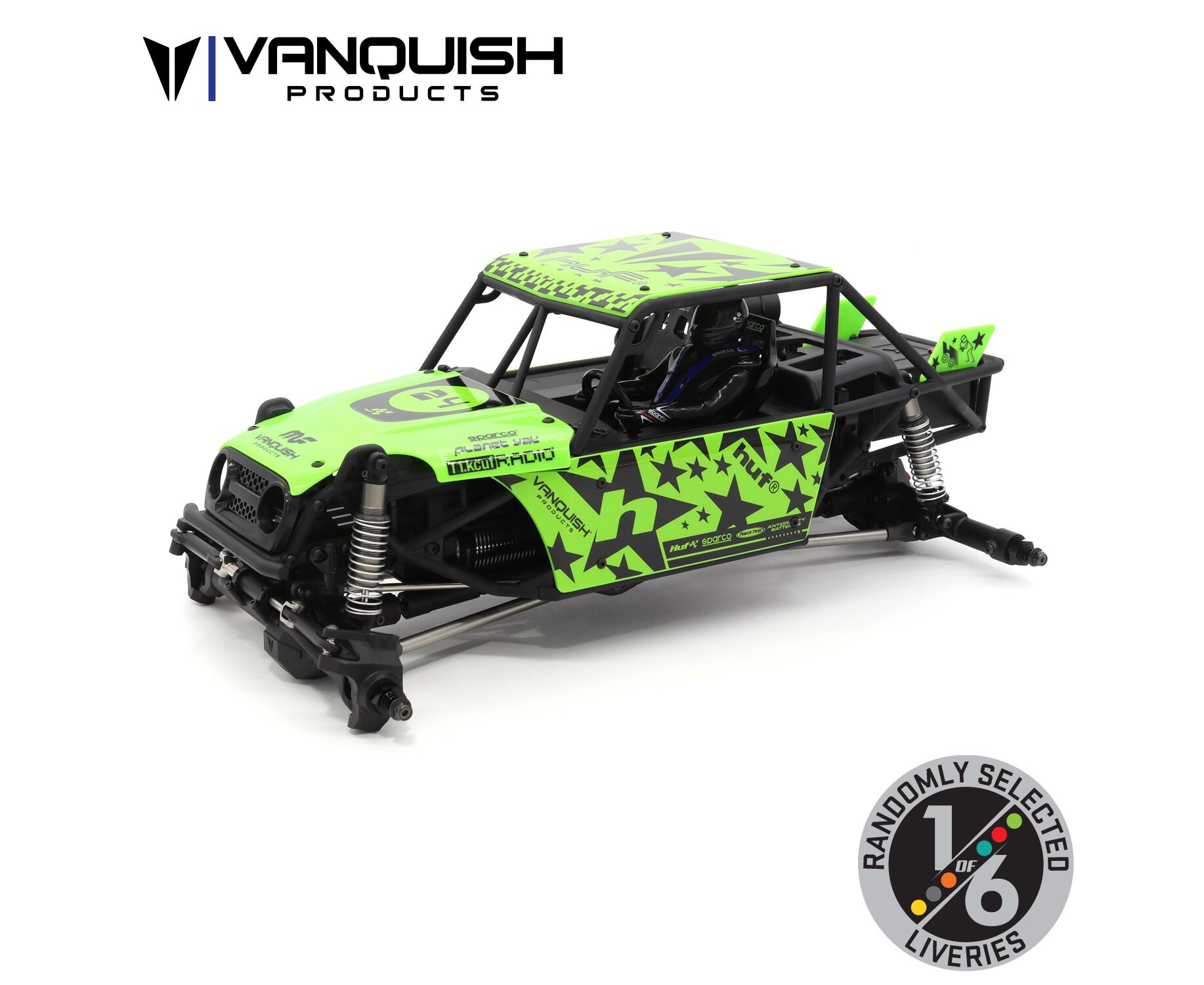

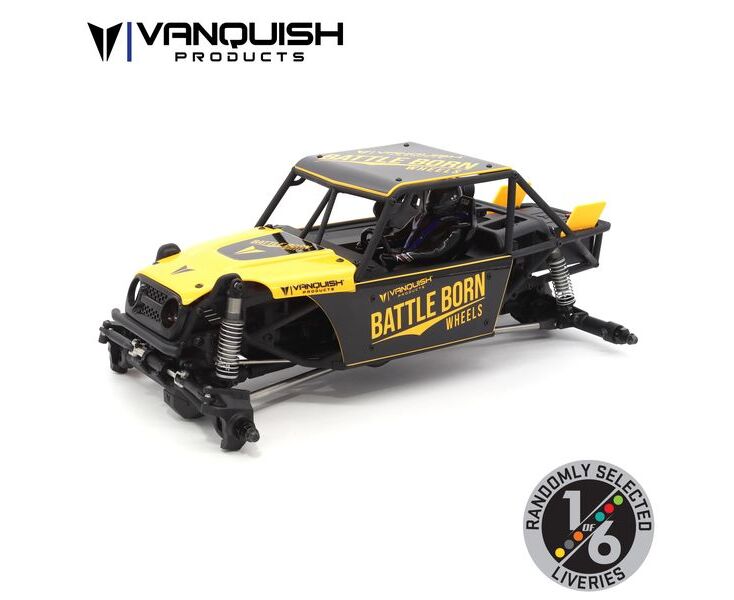

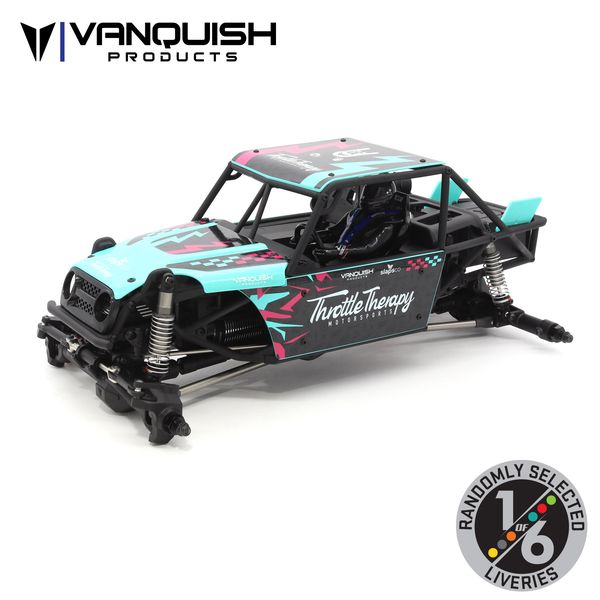

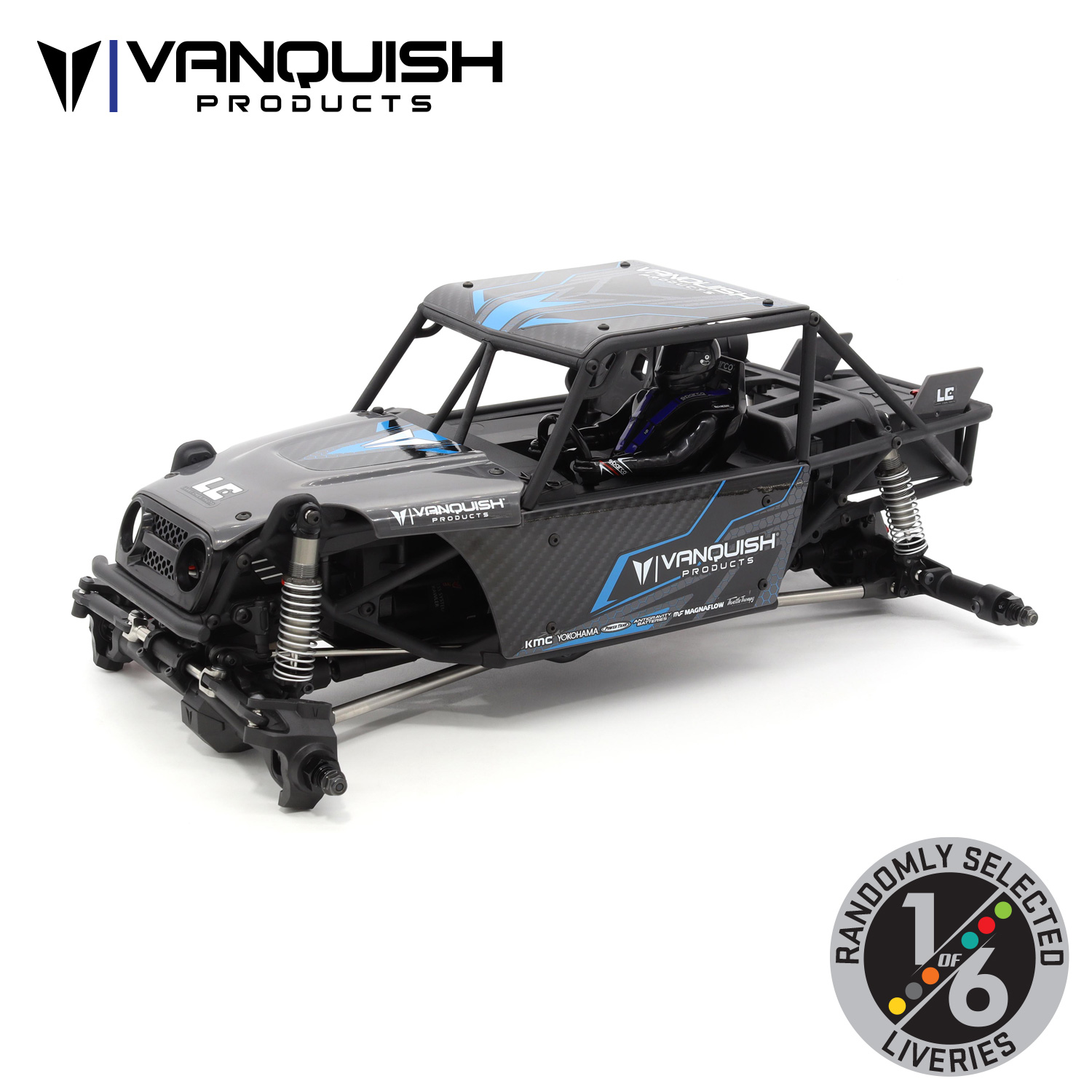

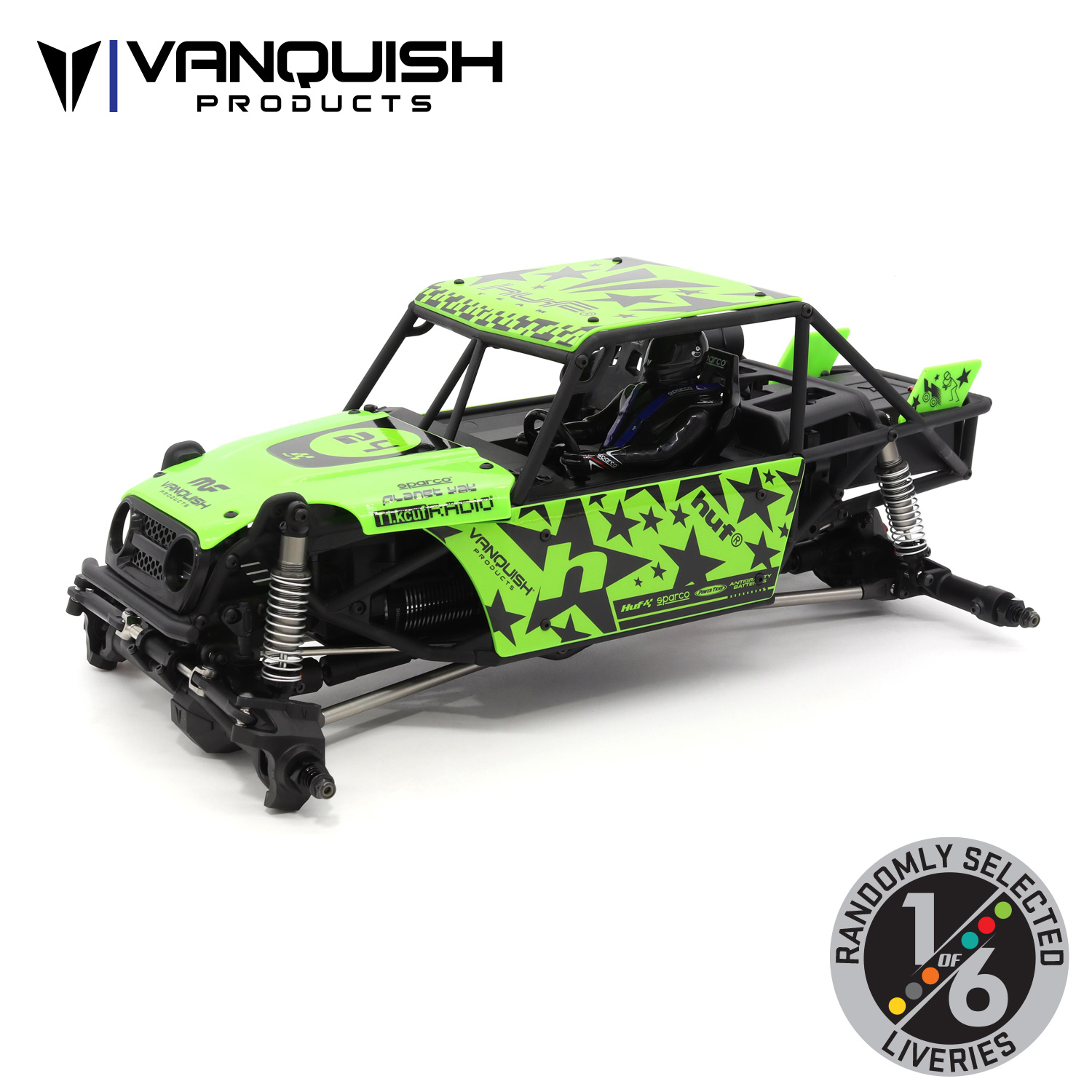

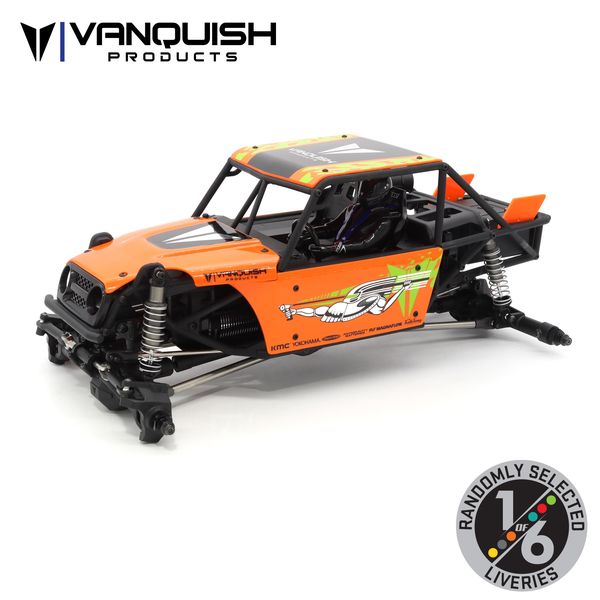

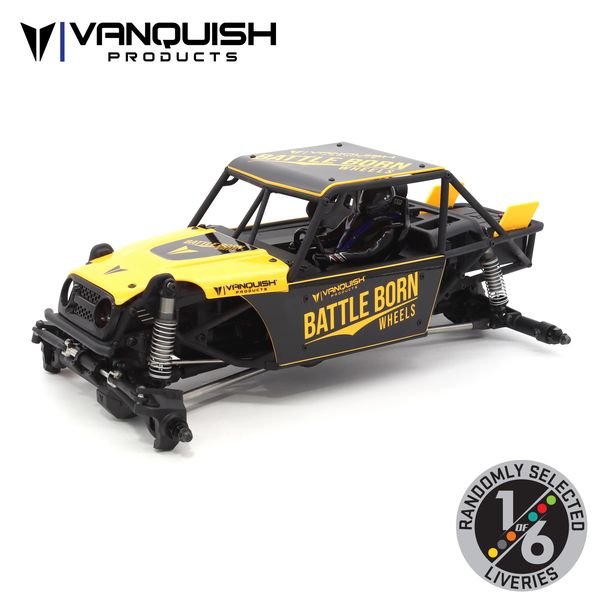

KIT ENTHÄLT EINE VON 6 LACKIERUNGEN

Das H10 Optic Kit wird mit einer zufällig ausgewählten Farbkombination und Grafik ausgeliefert. Die Version, die du erhältst, kann nicht vorher ausgewählt werden. Es gibt keine Kennzeichnung auf der Verpackung, welche Variante enthalten ist. Öffne dein Kit, um herauszufinden, welche Lackierung du bekommen hast!

Räder, Reifen und Elektronik sind nicht im Lieferumfang enthalten. Siehe Hinweis am Ende.









TRAIL

PURPOSE BUILT BUGGY

H10 AXLES

HYDRO STEERING*

OPTIC BODY

MOLDED ABS HARDBODY

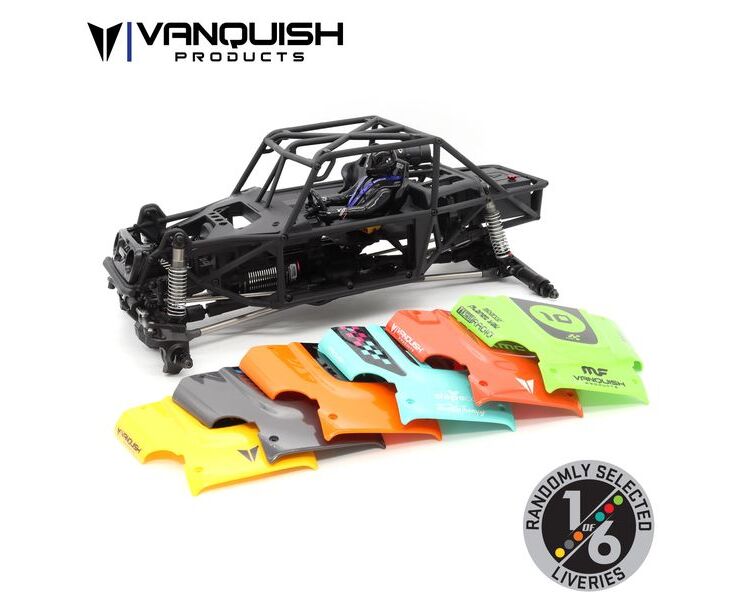

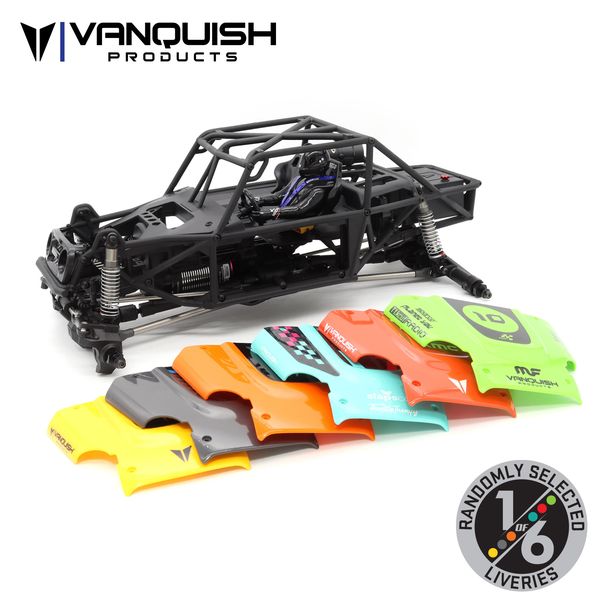

ONE OF SIX

UNIQUE LIVERIES

H10 HYDRO FRONT AXLE

Scale appearance meets performance with the new H10 Hydro Front Axle steering system.  Developed to simulate a double ended hydraulic ram steering system used in off-road rigs.  Utilizing a standard steering servo hidden behind the axle, the steering system is isolated from the chassis. The H10 Hydro front axle uses a 3pc ram that is protected and moved away from obstacles. The width of the H10 axle is increased by 0.600" compared to the F10 for even greater stability.



H10 HYDRO STEERING HIGHLIGHTS

4-LINK WITH AXLE MOUNTED SERVO

The Hyrdo ram replaces a traditional tie rod and the steering servo is hidden behind the axle.  All new H10 steering knuckles allow for the steering drag link to be protected and out of sight. The Hyrdo front axle includes VDI universal axle shafts for 47° of steering angle.

HARD ANODIZED 90MM S8E SHOCKS

Incision S8E shocks feature a large 8mm bore with adjustable preload and a bleeder style cap. The lower cartridge features dual X-Rings and a compact design to maximize travel. The aluminum body is hard anodized for a smoother and longer lasting product.



DETAILED MOLDED TUBE CHASSIS

H10 CHASSIS DETAILS

The styling of the H10 chassis is derived from Trail Buggy’s built to tackle the world's toughest terrain in comfort and style.  The 2-seat symmetrical design preserves a narrow overall width for easy navigation around obstacles. Short front and rear overhangs optimize approach and departure, allowing tires to hit obstacles first.

Battery Compartment Size: 93mm x 36mm x 42mm

SECURE BATTERY ACCESS

The access to your battery compartments couldn't be easier with a single pin and latch system holding each side panel on to gain quick access on the trail.



H10 MOLDED CAGE AND OPTIC ABS HARD BODY

H10 OPTIC VFD KIT SPEC TRANSMISSION

VFD TRANSMISSION

The VFD transmission in the H10 Optic Kit comes spec'd with Machined aluminum Motor Plate, Bearing Plates, Standoffs and spur gear adapter.

H10 OPTIC DRIVETRAIN

VFD TRANSMISSION

The center of the H10 Optic is the proven VFD transmission equipped with 6% overdrive.  Providing a low and forward motor position with a protective skid plate along the front of the skid plate.

OVERDRIVE TRANSFER CASE

Full ball bearing and metal gears provide strength and longevity for worry free performance.

H10 HYDRO FRONT AXLE

Front and Rear H10 axles are 0.600" wider than F10 Straight axles and built around the proven 30/8T Hypoid ring and pinion gear set.

UNIVERSAL JOINT AXLE SHAFTS

VDI Front axle shafts are 0.600" Wider than F10 Straight axles and provide 47° of steering angle.


LICENSED SPARCO RACING INTERIOR

HIGHLY DETAILED 3D INTERIOR

Molded ABS Interior with scale driver and uses several Licensed Sparco designs

Air Pro RF-5W Helmet

Land+ Gloves

EVO L QRT

Competition Race Suit

Racing Harness

1/10th Scale

Axle Ratio 3.75:1

Pinion 13T 32P

Spur 56T 32P

Overall Width Hex to Hex - 206mm (8.11”)

Wheelbase - 337mm (13.26”)

Overall Height (w/4.75" Tires) - 198mm (7.80”)

Overall Front Ratio 41.3:1

Overall Rear Ratio 44.0:1

Final Overdrive 6%

Battery Compartment Size: 93mm x 36mm x 42mm

General
Massstab
1:10
Motor / Antrieb
  • Elektro Bürstenmotor
Einsatz
  • Crawler/Scaler
Anspruch
  • Anfänger/Einsteiger
Fertigungsgrad
Bausatz
Hersteller
Vanquish Products
