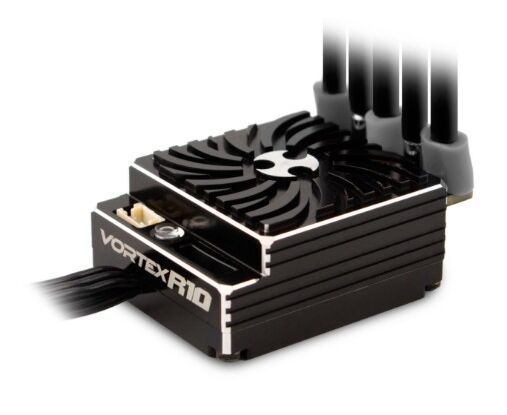

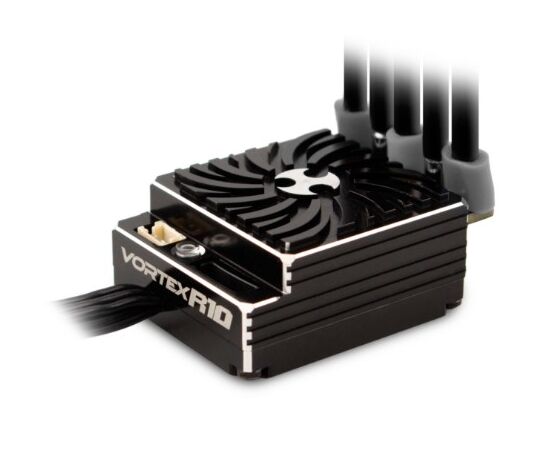

Vortex R10 Pro V2 Brushless ESC (120A, 1S Only)
This ESC is a new version specifically updated for 1S LIPO racing. We have designed a new lighter full aluminum case and fitted the ESC with smaller wires and a 1S Lipo specific power capacitor. The BEC booster is also a new more robust design which can power servos and receivers with reliable power.
1S Lipo only specific design
New DC/DC BEC booster for reliable servo and RX power supply
New full aluminum lightweight case
Lightweight/short wires
1S Lipo specific power capacitor
ORI65149 Vortex R10 Pro V2 Brushless ESC (120A, 1S Only)
Technical Specifications Cont./max current: 120/830A Supported motors: 540 2-Pole sensor/sensorless Designed for: 1/12 scale on-road cars Motor limit: 3.0T (w/zero timing) Resistance: 0.00026 Ohm Input: 3V to 5.76V (1S LiPo or 3-4 cell NiMH) Warning! 2S Lipo or 5+ cell NIMH cannot be used! BEC: 6V/3A with DC/DC booster
1S Lipo only specific design
New DC/DC BEC booster for reliable servo and RX power supply
New full aluminum lightweight case
Lightweight/short wires
1S Lipo specific power capacitor
ORI65149 Vortex R10 Pro V2 Brushless ESC (120A, 1S Only)
Technical Specifications Cont./max current: 120/830A Supported motors: 540 2-Pole sensor/sensorless Designed for: 1/12 scale on-road cars Motor limit: 3.0T (w/zero timing) Resistance: 0.00026 Ohm Input: 3V to 5.76V (1S LiPo or 3-4 cell NiMH) Warning! 2S Lipo or 5+ cell NIMH cannot be used! BEC: 6V/3A with DC/DC booster
General
Verwendung
- RC Auto
Motor / Antrieb
- Elektro Brushless-Motor
Hersteller
Team Orion
