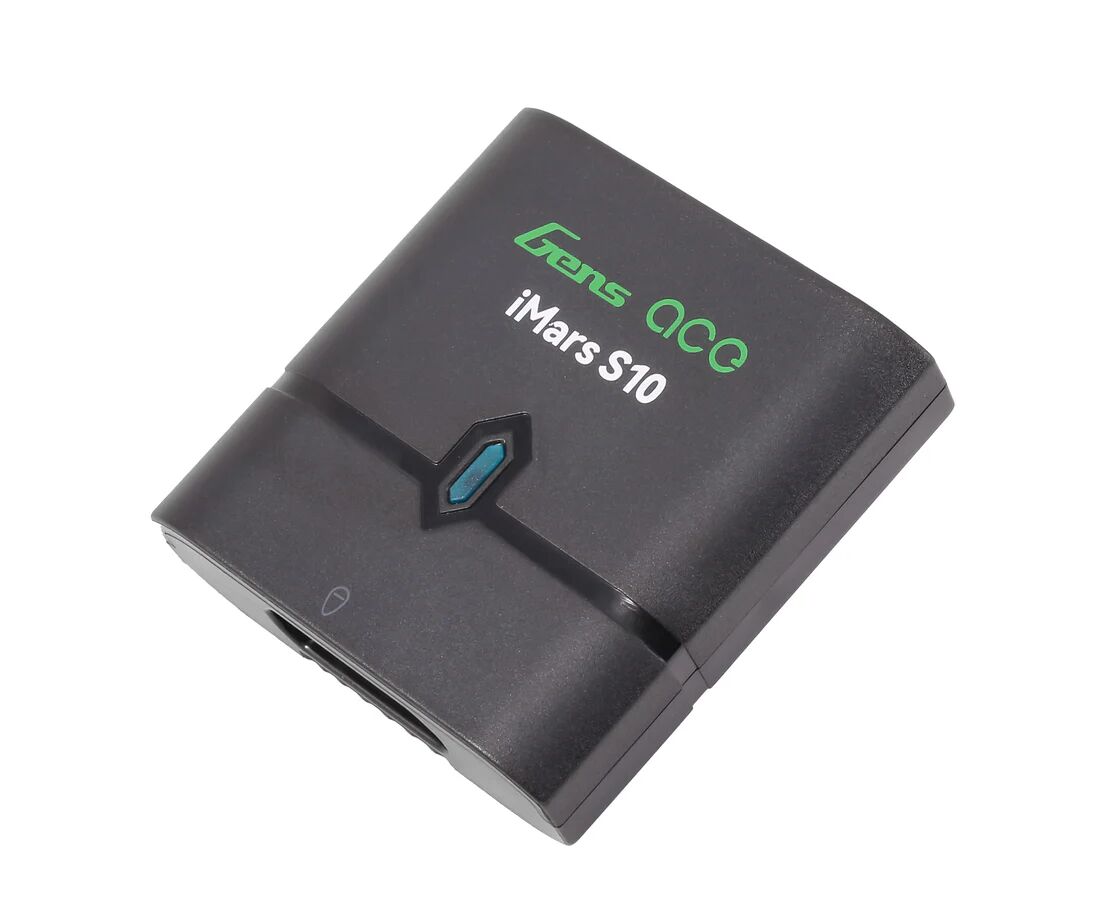

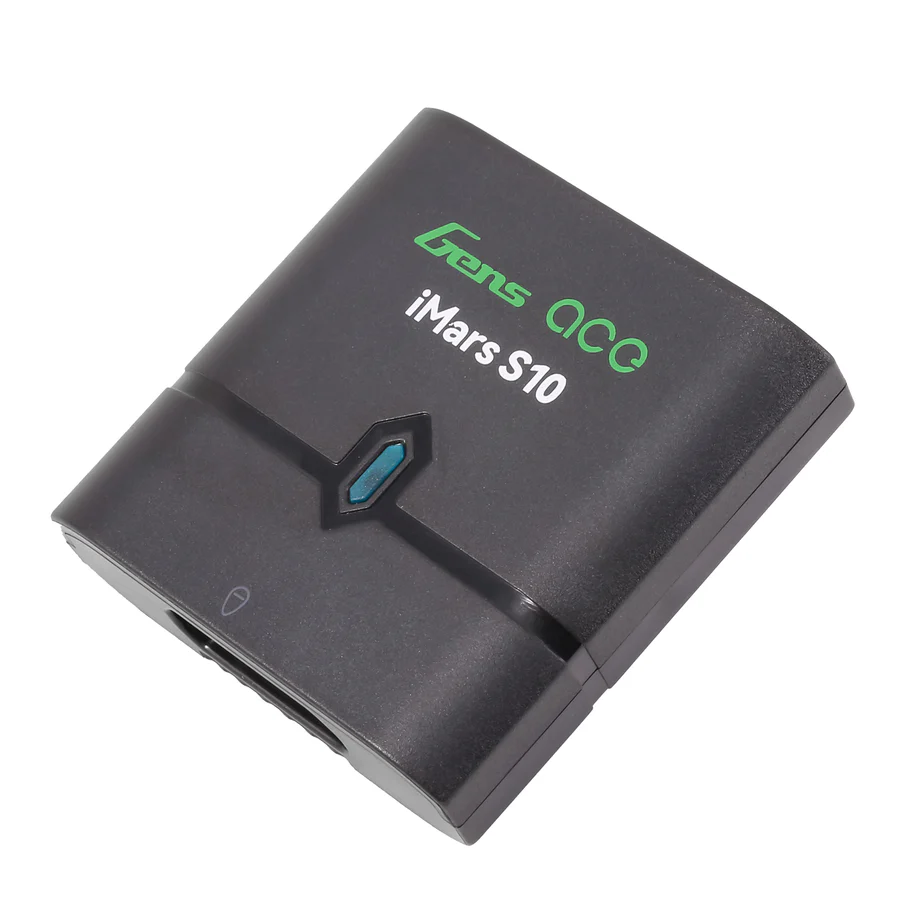

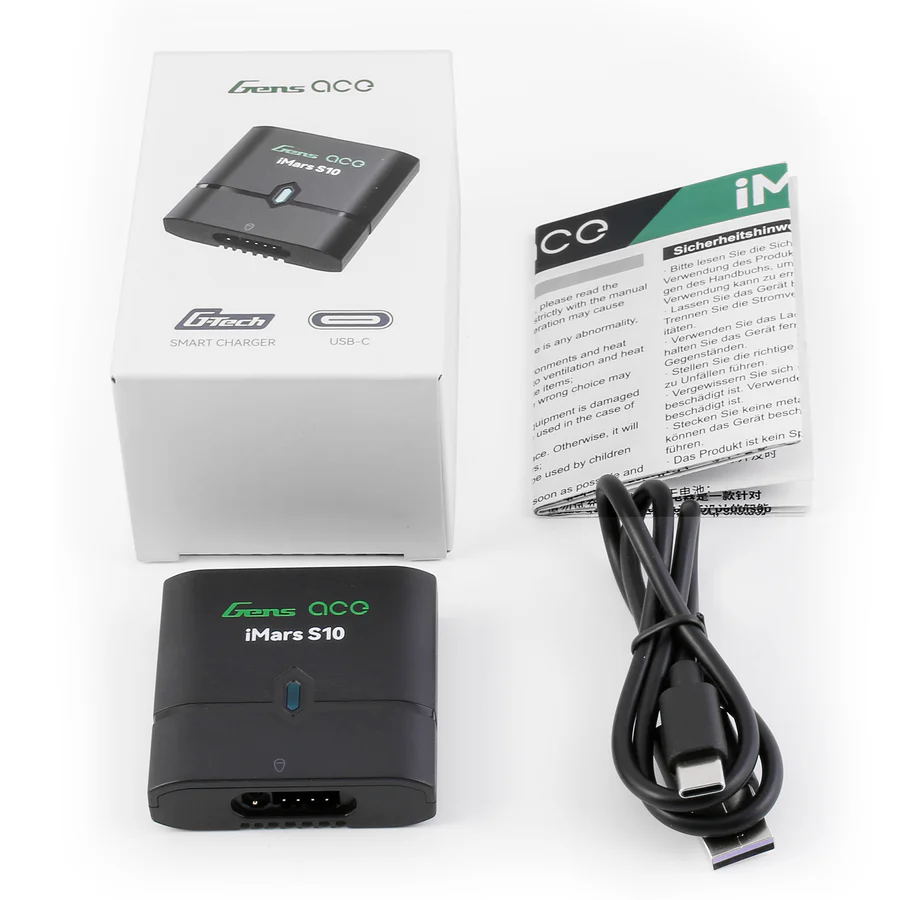

GensAce Ladegeraet iMars S10 G-Tech (10W/2-3S)
The Gens ace iMars S10 G-Tech Portable Charger, which has recently been introduced as a new member of the G-Tech Eco series, is specifically designed to cater to the needs of G-Tech batteries. However, it also boasts compatibility with a wide range of non-G-Tech options that are prevalent in the airsoft industry. This versatile charger is suitable for batteries with capacities ranging from a modest 250mAh up to approximately 3000mAh. The voltage range it supports includes the commonly used 7.4V, 7.7V, 11.1V, and 11.4V, making it a versatile choice for various airsoft battery types.
Featuring the G-tech connector, the iMars S10 is equipped with an intelligent system that can automatically detect whether the battery is a Higher Voltage version or not. Upon this detection, the charger will then select the most appropriate charging mode to ensure the battery is charged optimally. In cases where the battery is not equipped with a G-tech connector, the charger defaults to a standard charging protocol, setting 4.2 volts as the full charge voltage for each cell. This protocol applies to both regular batteries and those with higher voltage specifications, ensuring a consistent and safe charging experience.
Recommended Batteries: Airsoft Gun battery & Smaller capacity battery in RC filed
Product Parameter
l Max.Charge Power: 10W
l Charge Current: Max.0.8A
l Charging Connector: Only Balancing Connector allowed
l Input voltage:5V
l Output Voltage:5~13.05V
l Max.Input Current:DC2A
l Balance Current:Max.80mA
l Input port:BC1.2/SDP/CDP/DCP/Apple 5V/2.4A
l (Unavailable for 5V/1A power supply adapter input)
l Abnormal battery voltage alarm:Yes
l Output reverse connection protection and alarm:Yes
l Balance port reverse connection protection and alarm:Yes
l Supported Battery Types: LiPo2~3S
l Working Temperature:0~45C
l Storage Temperature:-20℃~60℃
l Dimension:51x51x14mm
l Net Weight: Apporx. 23 g
Indicator Description
|
Working Status Indicator Description |
|
|
Connected to Power |
Green flashing three times |
|
Chargingwith G-Tech |
Red light blinks after |
|
Charging with non-G-Tech |
Red flashing |
|
Full charge |
Solid green light |
|
Error warning |
Solidred light |
