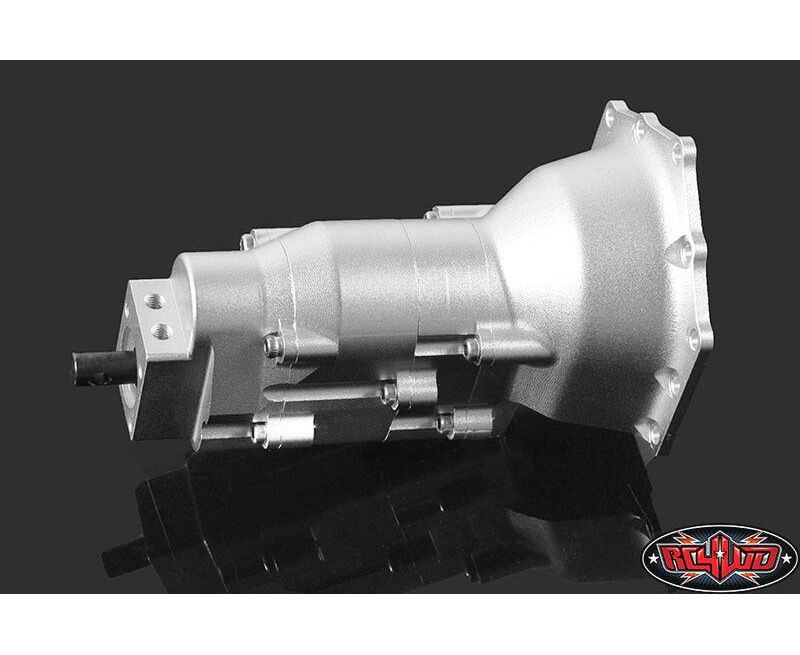

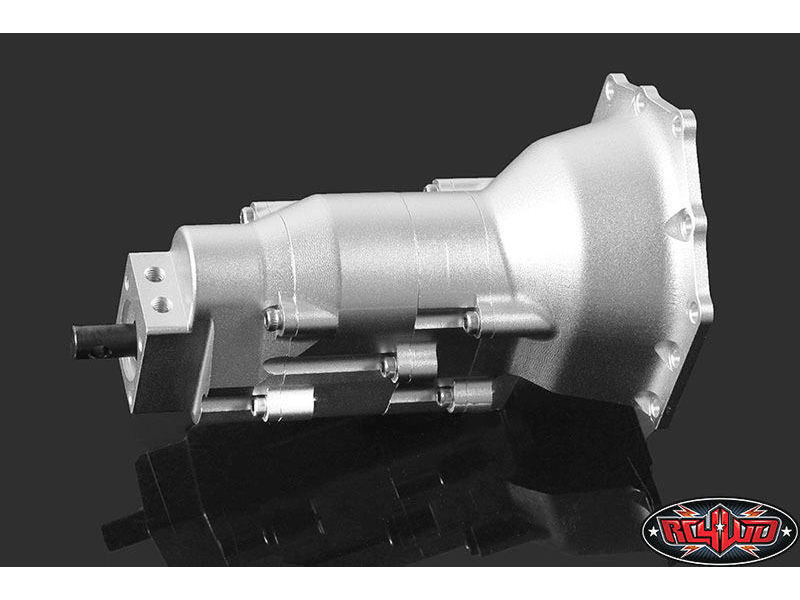

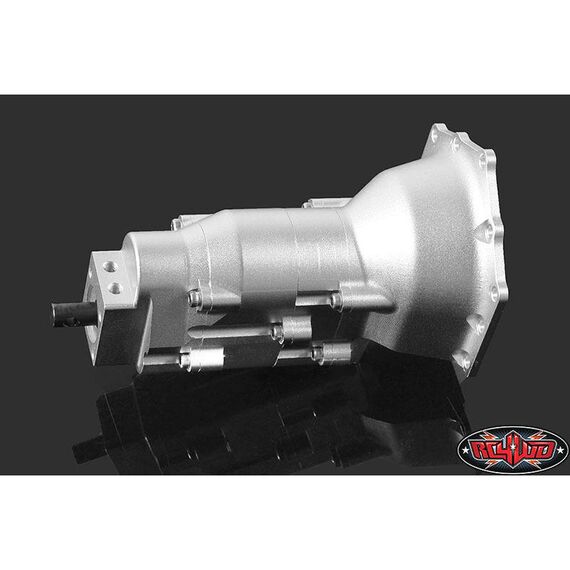

R4 Ultimate Scale Single Speed Transmission

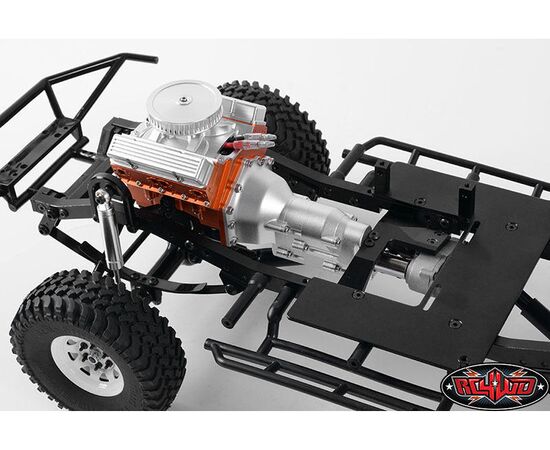

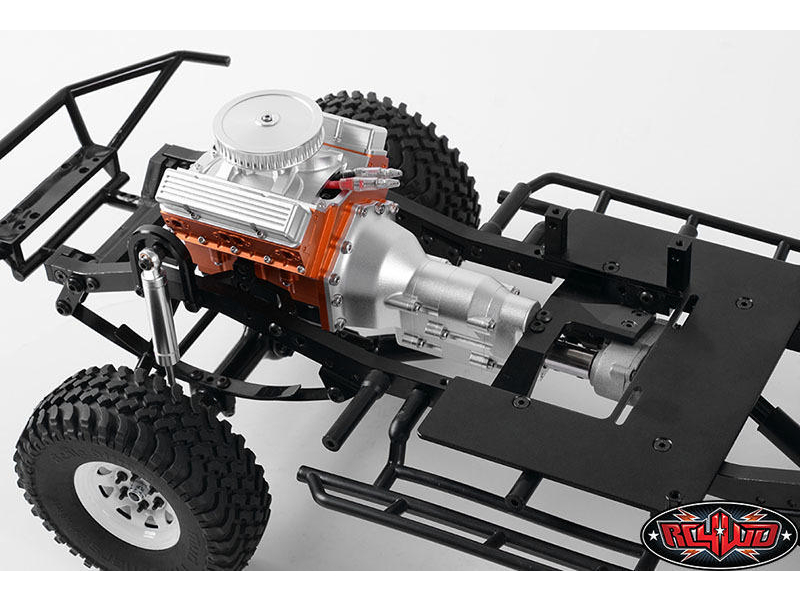

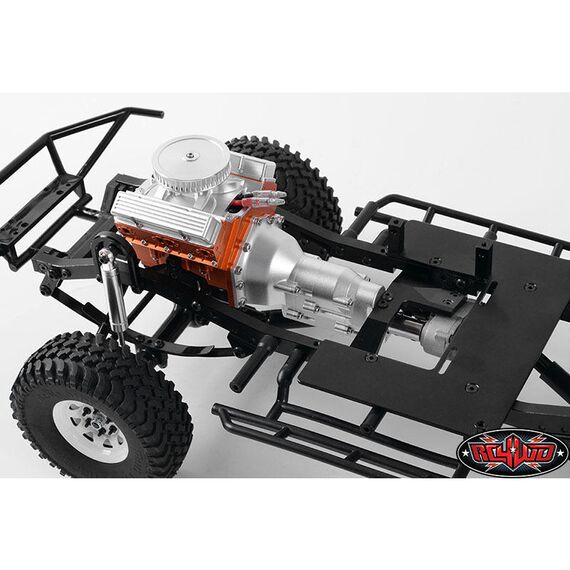

This is the RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission. This transmission will be sure to add a whole new level of realism to your build. Pair it with our RC4WD 1/10 V8 Engine to complete your build. This has been Officially Licensed by TCI Automotive and is only available from RC4WD and our Dealers.

Specifications:

• CNC Machined
• Billet Aluminum
• Body Width: 1.99in / 50.6mm
• Body Length: 3.07in / 78mm
• Body Height: 2.36in / 60mm
• Output Shaft Length: 0.33in / 8.5mm
• Output Shaft OD: 0.19in / 5mm
• Gear Ratio: 10.1:1
• Weight: 5.86oz / 166g

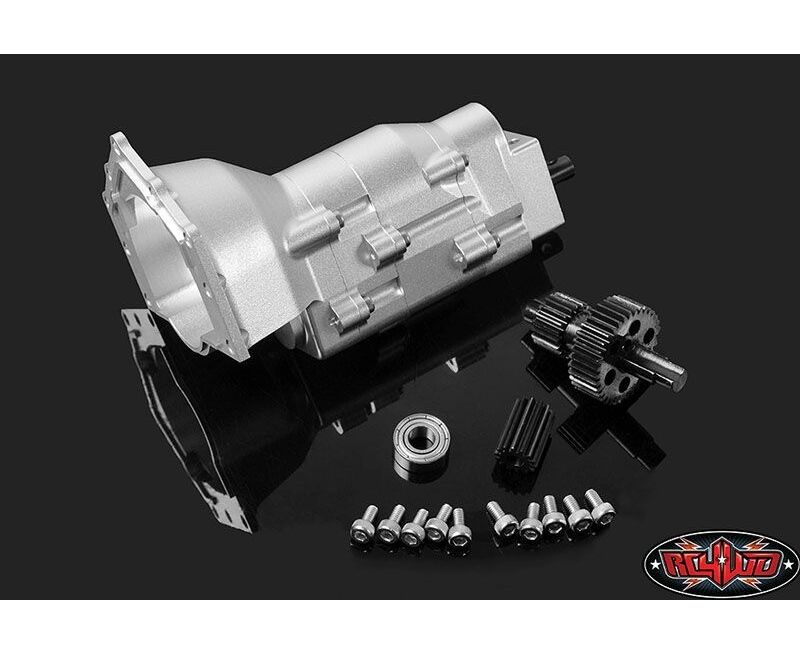

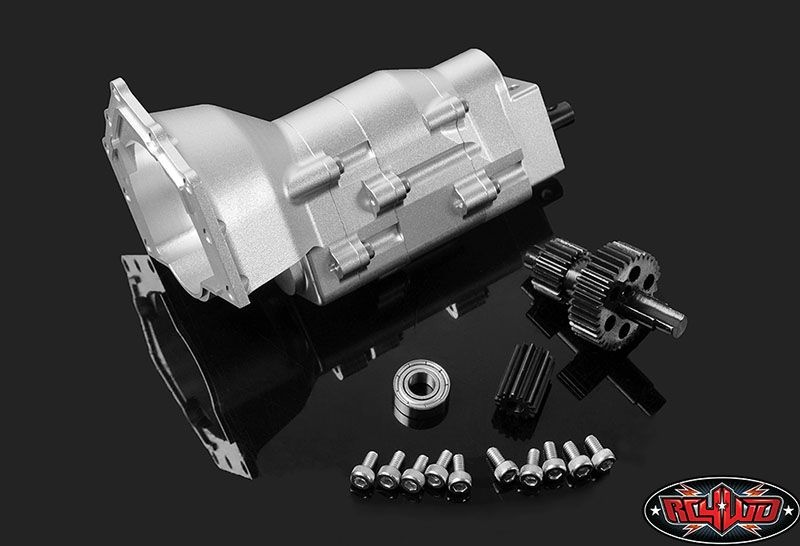

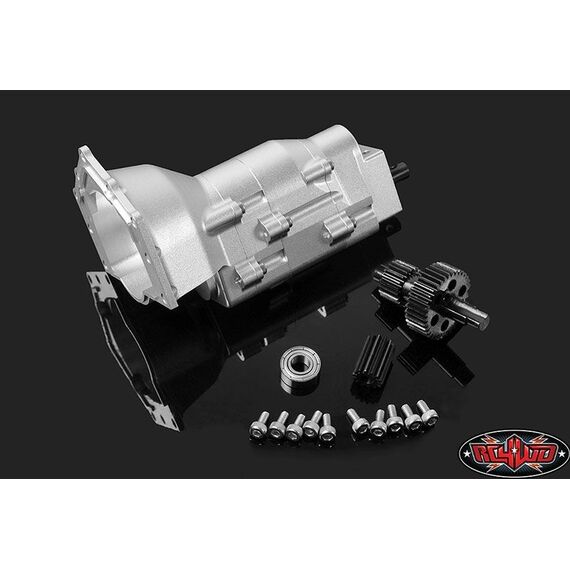

What's Included:

• 1x RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission
• 1x 14T 48P Pinion Gear
• 1x 36T / 20T 48P Gear
• 10x M2.5 x 5mm SHCS (Silver) (Z-S1207)
• 1x Metal Shield Bearing 5 x 11 x 4mm (Z-S0683)
• 1x TCI Transparent Decal Sheet
• 1x TCI Small Decal Sheet

Replacement Parts:

• Replacement Gears for R4 Transmission (Z-G0067)

Required Parts:

• 1/10 V8 Engine (Z-S1043)

Optional Parts:

• Trail Finder 2 V8 Engine Mounts (Z-S1239)
• Motor Mount for R4 Transmission (Z-S1627)

Replacement Hardware:

• 7x Metal Shield Bearing 5 x 11 x 4mm (Z-S0683)
• 1x Metal Shield Bearing 5 x 10 x 4mm (Z-S0686)
• 11x M2 X 6mm SHCS (Silver) (Z-S0994)
