Stampede 4x4 1/10 Bausatz inkl. Elektronik oh.Akku

TRAX67014-4
CHF389.00
Nicht auf Lager

Traxxas Stampede 4x4 Bausatz mit Elektronik

Das Stampede 4X4 Assembly Kit verleiht Ihrer RC-Erfahrung eine unterhaltsame und aufregende Dynamik. Bauen Sie Ihre Stampede von Grund auf mit allen erforderlichen Teilen und der Elektronik, die im Lieferumfang enthalten sind. Sie erhalten den Komfort eines TQ T 2,4-GHz-Funksystems, eines leistungsstarken Titan®-Elektromotors und einer wasserdichten elektronischen XL-5-Geschwindigkeitsregelung. Alle Teile sind ordentlich in beschrifteten Beuteln mit einem vollständig illustrierten Farbhandbuch angeordnet, damit das Bauen lohnend und unterhaltsam wird. Das Stampede 4X4 Kit ist perfekt für Fahrer aller Altersgruppen und Könnensstufen. Entdecken Sie, warum die Geländetauglichkeit und die Robustheit des Stampede 4X4 nur durch seinen Ruf für puren Spaß ohne Unsinn konkurrieren.


Das Stampede 4X4 Kit wurde für Traxxas Tough T entwickelt, um all das Monster-Chaos mit Allradantrieb zu bewältigen, das Sie austeilen können. Durch die große Bodenfreiheit und die langarmige Federung fühlt sich Stampede 4X4 unaufhaltsam an. Das Stampede 4X4 Assembly Kit kombiniert den ganzen Schlammschleuder-Spaß des RTR Stampede mit der Aufregung, Ihren eigenen Truck zu bauen.





67014-4 Stampede 4X4 Kit Features:

  • Unassembled kit with electronics
  • Includes XL-5™ ESC, Titan® 12-turn motor, servo, and TQ™ 2.4GHz radio system
  • Clear Stampede 4X4 body
  • Full color assembly manual
  • Shaft-driven 4-wheel drive
  • Oil-filled Ultra Shocks
  • Sealed steel-gear differentials
  • Includes chrome All-Star™ 2.8" wheels and Chevron Maxx™ tires

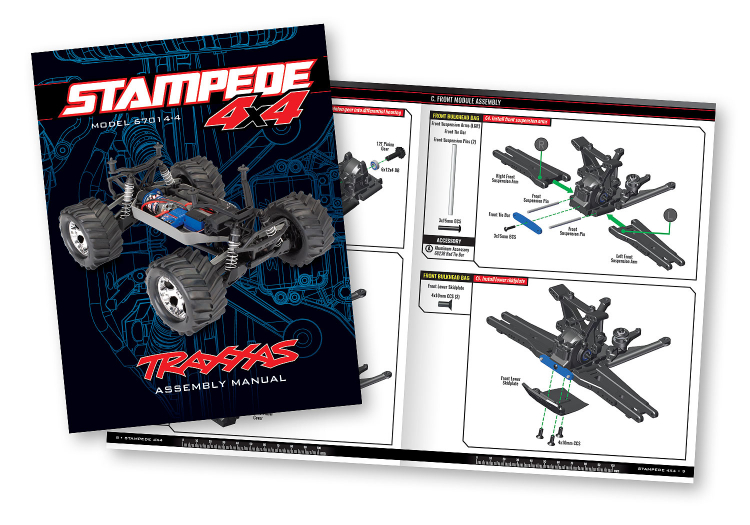

Easy to Follow Assembly Instructions
The Stampede 4X4 Assembly Kit isn’t just for expert hobbyists. Traxxas goes the extra mile to make the full-color instruction book easy to follow and fun to use. Each section corresponds to a labeled bag with step-by-step assembly instructions. True-to-scale part illustrations and ruler charts make it easy to differentiate between different screws, bearings, and gears. Helpful assembly tips and clear illustrations take the frustration out of the assembly process. Have fun on the workbench and in the dirt with the new Stampede 4X4 kit.

WHAT YOU'LL NEED:
  • Battery with Traxxas High-Current Connector
  • 6 or 7 cell NiMH battery pack
  • 2s or 3s LiPo battery pack
  • Battery charger
  • Metric hex drivers
  • 1.5 mm, 2.0 mm, 2.5 mm
  • Basic hand tools
  • Screwdrivers, needle nose pliers
  • Traxxas Ultra-Premium Tire Glue (part #6468) or CA glue
  • Safety glasses
  • Polycarbonate paint

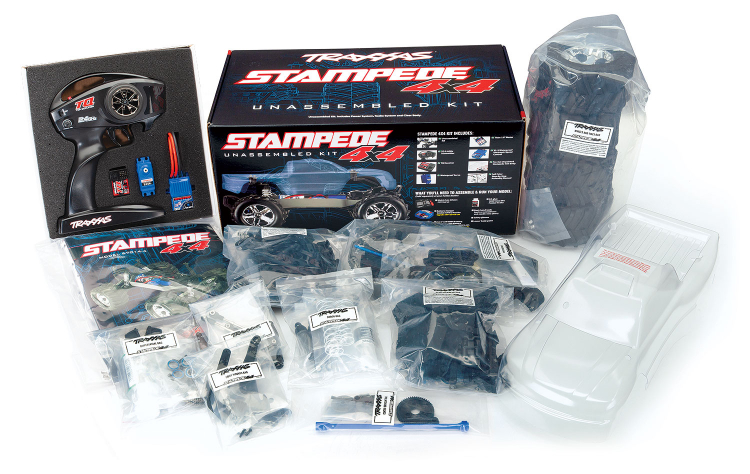

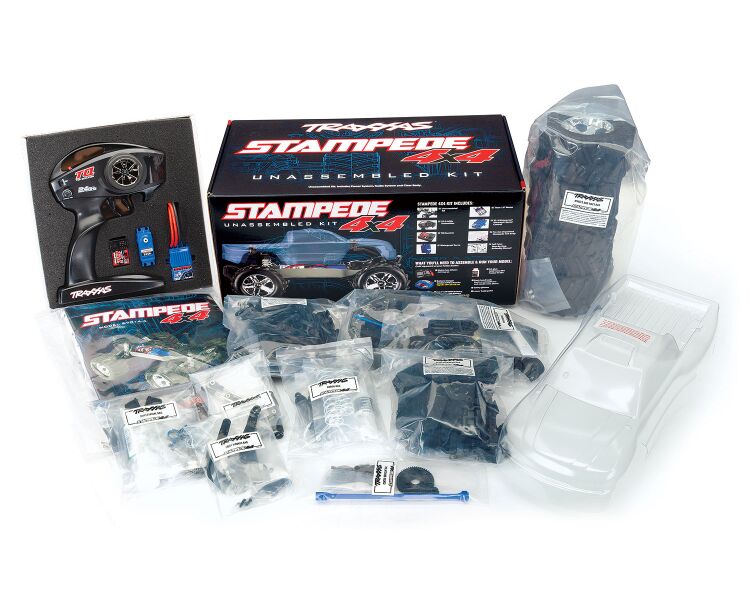

Ready to Assemble
The Stampede 4X4 Kit arrives ready to assemble with a pre-cut clear body and full-color instruction guide to make building rewarding and fun. Unmatched parts support keeps your Traxxas vehicle running strong with parts and support from thousands of hobby dealers worldwide. Traxxas goes the extra mile to ensure that your RC experience is easy and fun.


STAMPEDE 4X4 KIT (#67010-4) SPECS:
  • Length: 397 mm
  • Front Track: 340 mm
  • Rear Track: 340 mm
  • Center Ground Clearance: 75 mm
  • Weight: 2.57 kg (with electronics installed)
  • Height (overall): 227 mm
  • Wheelbase: 275 mm
  • Shock Length: Long (front), XXLong (rear)
  • Tires: Chevron Maxx™ 2.8"
  • Tire Diameter: 129 mm (front and rear)
  • Wheels (front/rear): 2.8" Chrome (All-Star™)
  • Wheel Diameter: 2.8" (72 mm)
  • Speed Control Type: XL-5™ Electronic Speed Control
  • Motor (electric): Titan® 12T 500 (12-turn)
  • Differential Type: Hardened Steel Bevel, Sealed, Limited Slip
  • Gear Pitch: 32
  • Chassis Structure/Material: Molded Tub / Nylon Composite
  • Drive System: Shaft-Driven, Direct Drive 4WD
  • Steering: Dual-Bellcrank with Integrated Servo Saver
  • Radio System: TQ™ 2.4GHz (2-channel)
  • Body: Pre-cut clear polycarbonate
  • Skill Level: 1
  • *Battery Tray Dimensions: 142 x 48.5 x 23/25 mm
*Battery expansion kit available (#6727X)

XL-5 (WATERPROOF) ESC SPECIFICATIONS
  • Input voltage: 4-7 Cells (4.8 to 8.4 Volts DC)
  • Case Size: 31 mm x 55 mm x 15.5 mm
  • Weight: 2.44 Ounce
  • Motor Limit: 15-turns** (540 Size)
  • 12-turns** (550 Size)
  • On Resistance Forward: 0.007 Ohms
  • On Resistance Reverse: 0.014 Ohms
  • BEC Voltage: 6.0 VDC
  • BEC Current: 1A
  • Power Wire: 14 Gauge / 5"
  • Input Harness Wire: 26 Gauge / 9"
  • PWM Frequency: 1600 Hz
  • Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
  • Thermal Protection: Thermal shutdown
  • Single-button setup: Yes, Traxxas EZ-Set®

Profile selection:
  • Sport Mode: 100% FWD, 100% brakes, 100% REV
  • Race Mode: 100% FWD, 100% brakes, no REV
  • Training Mode:* 50% FWD, 100% brakes, 50% REV

*Patented

**Properly Geared

General
Massstab
1:10
Motor / Antrieb
  • Elektro Bürstenmotor
Einsatz
  • Off-Road
Anspruch
  • Anfänger/Einsteiger
Fertigungsgrad
Bausatz
Max. Geschwindigkeit
40-50 km/h
Hersteller
Traxxas
Finde Vergleichbares

Infos (31_67014-4_INFO_E.pdf, 776 Kb) [Herunterladen]

Anleitung (31_67014-4_MANUAL_DE.pdf, 10,391 Kb) [Herunterladen]

Ersatzteile (31_67014-4_PARTS_E.pdf, 793 Kb) [Herunterladen]
