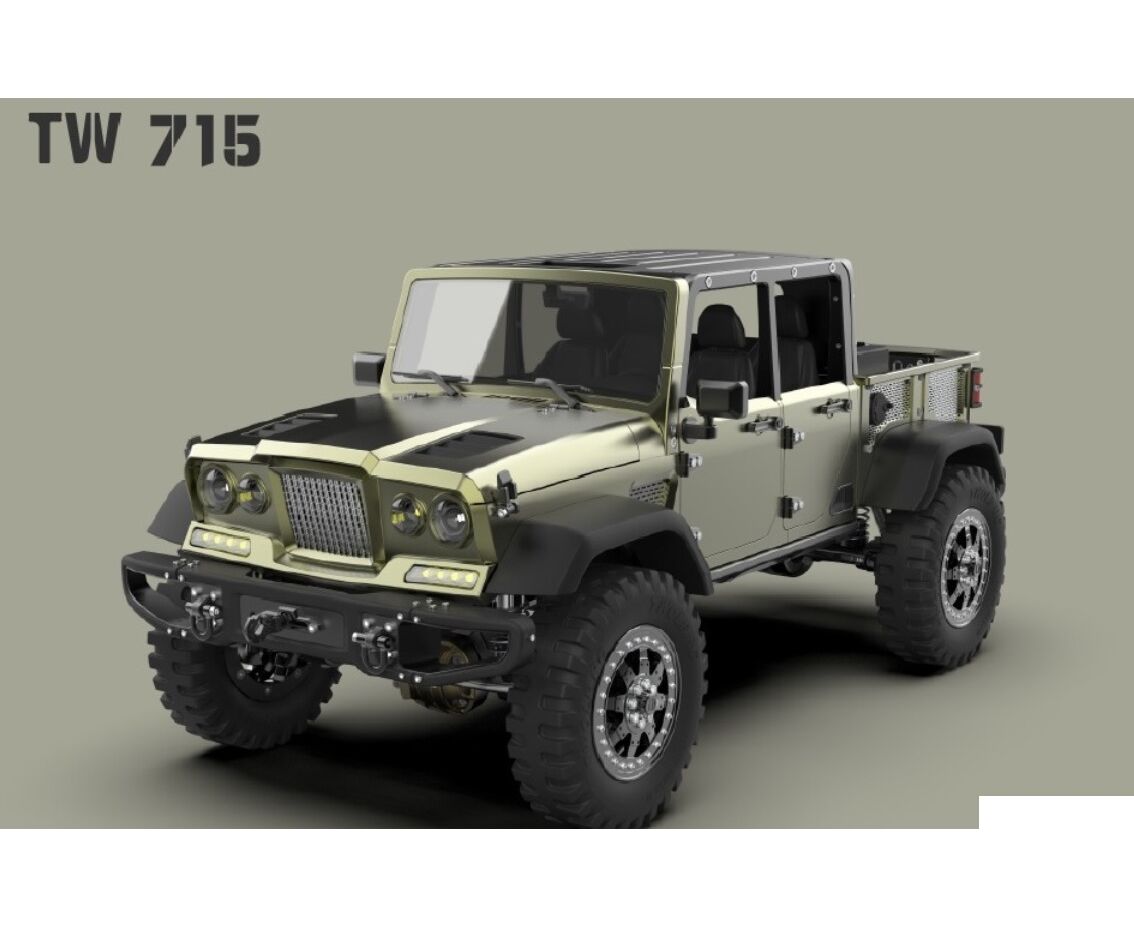

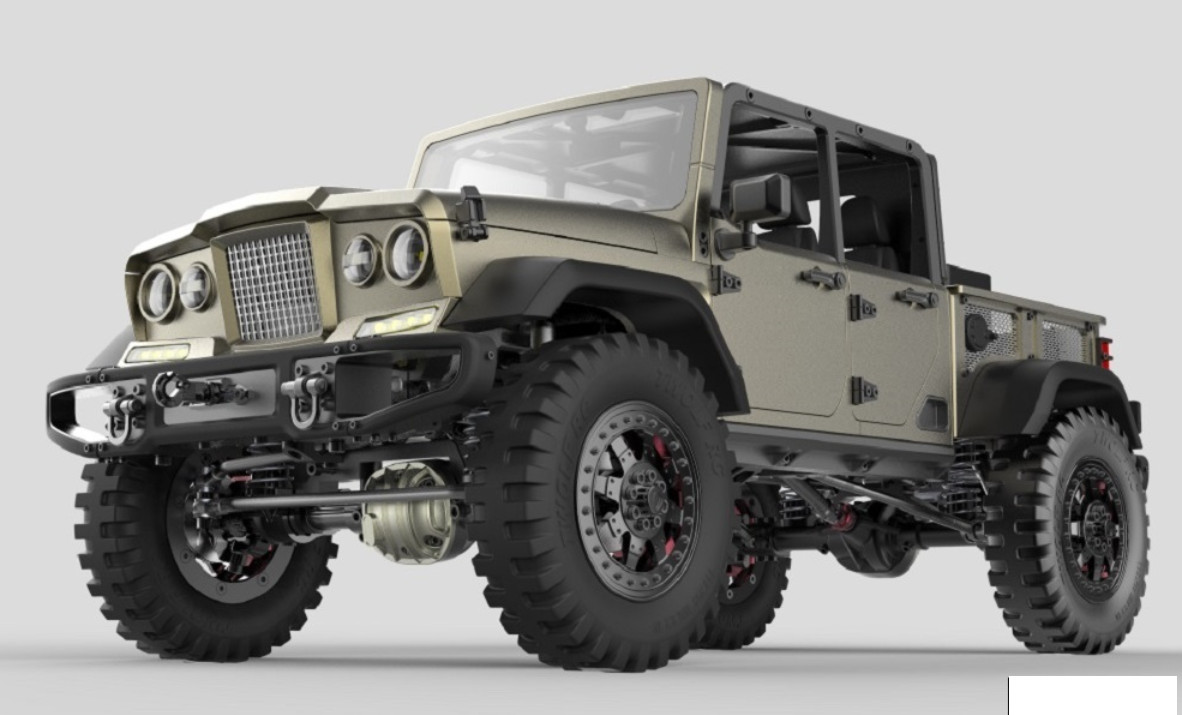

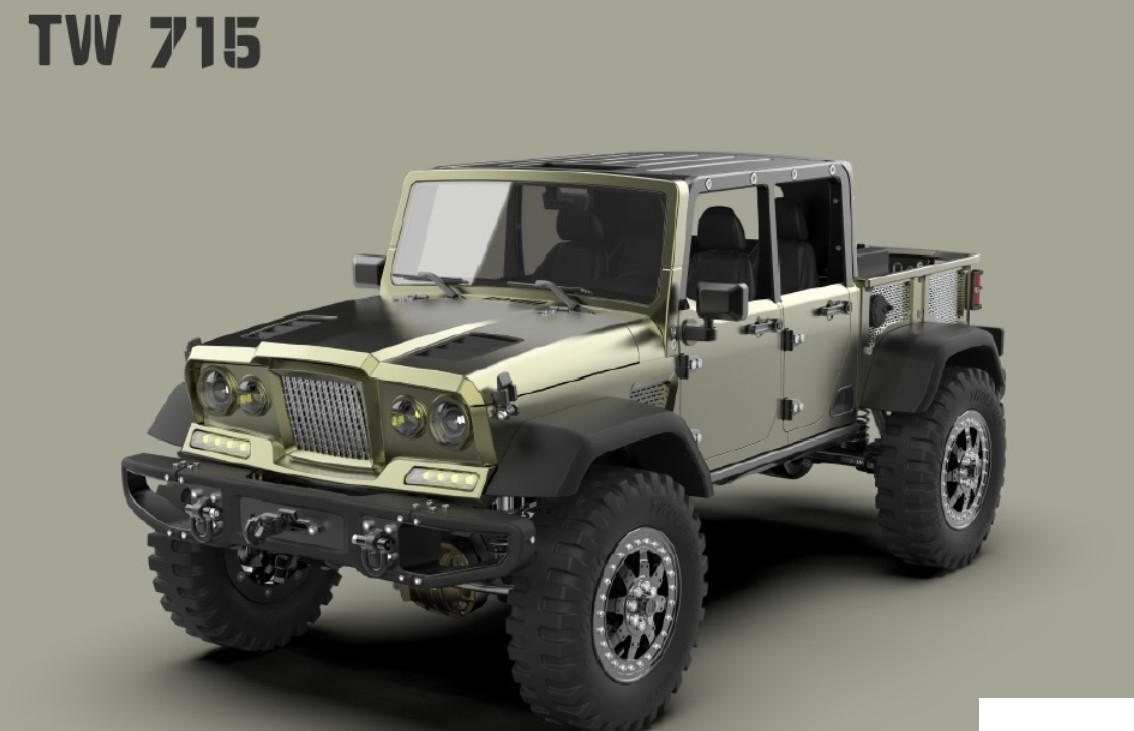

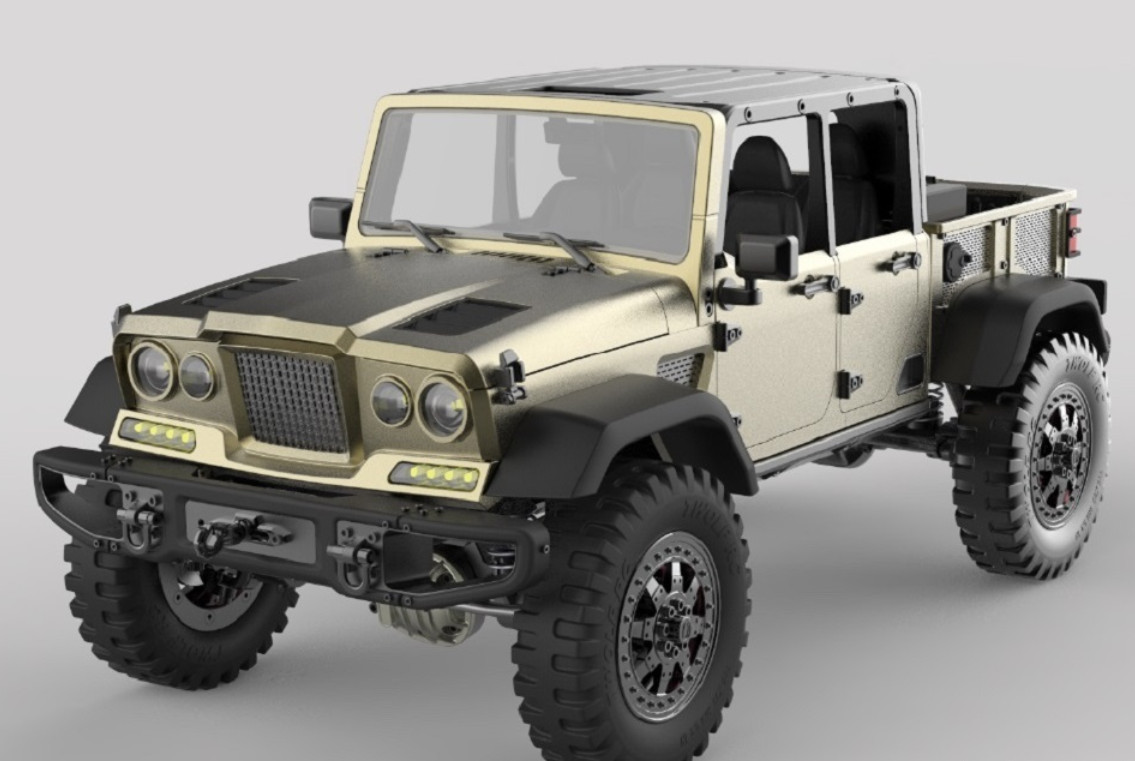

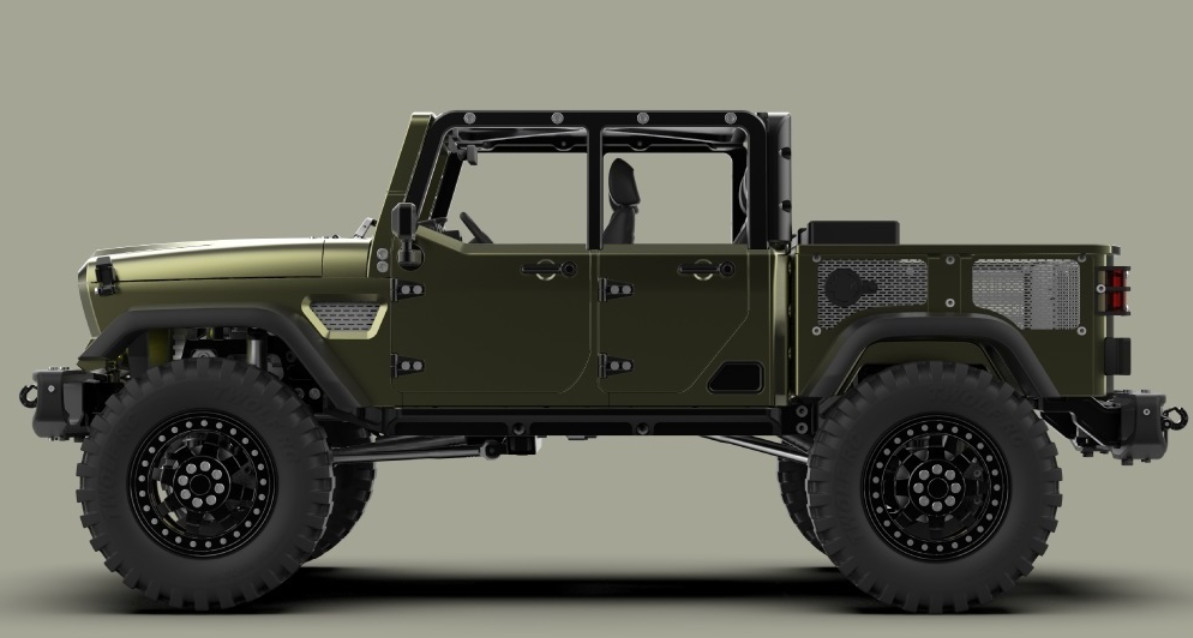

TW-715 1:10 Crawler Bausatz

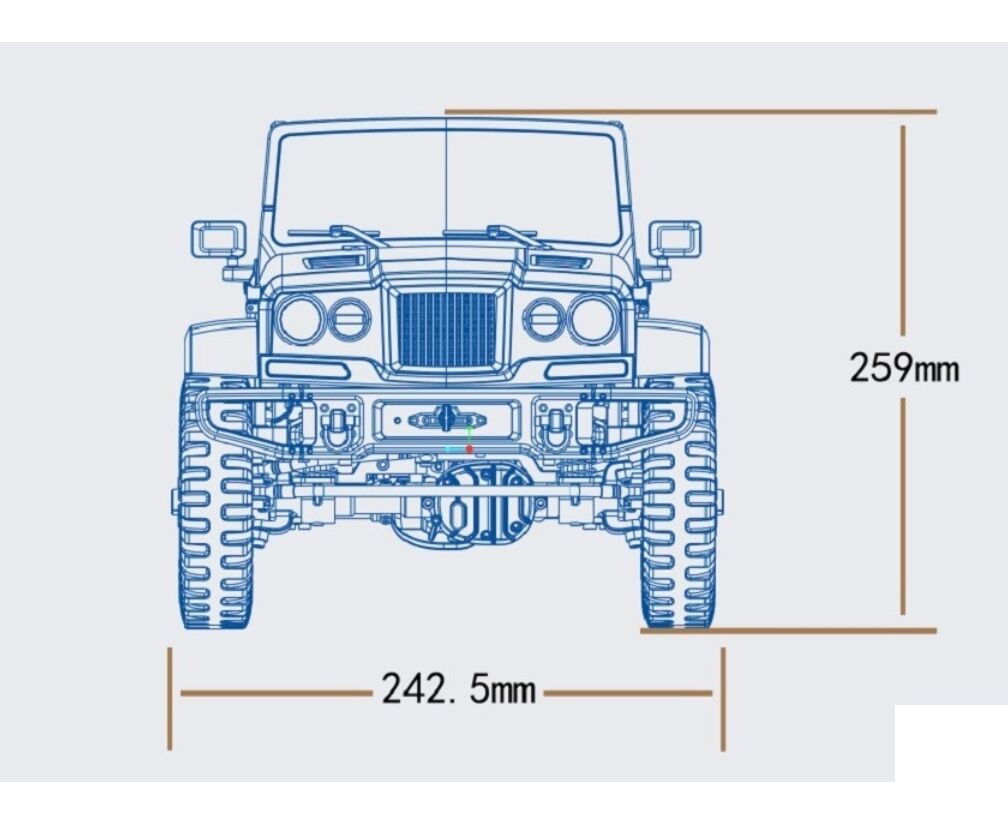

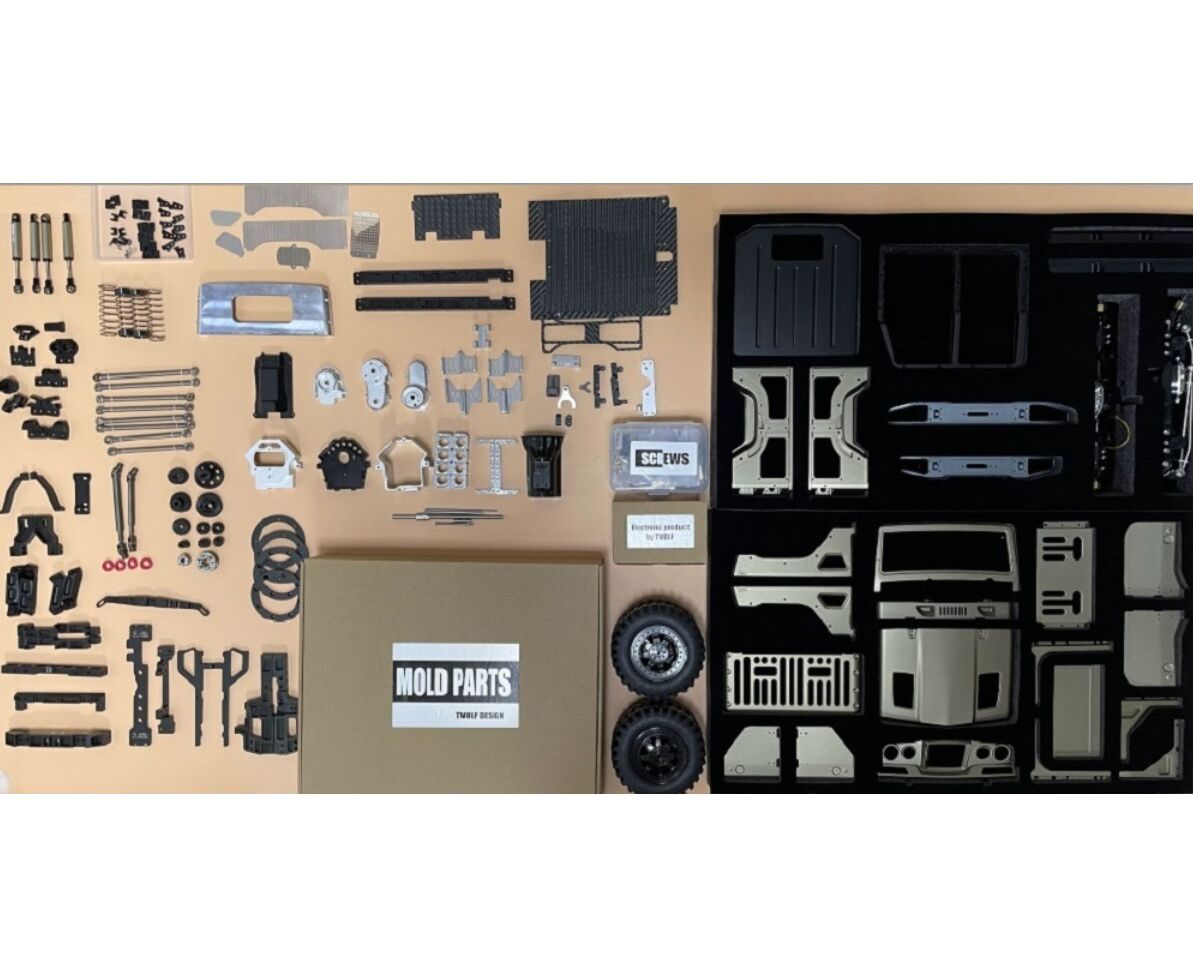

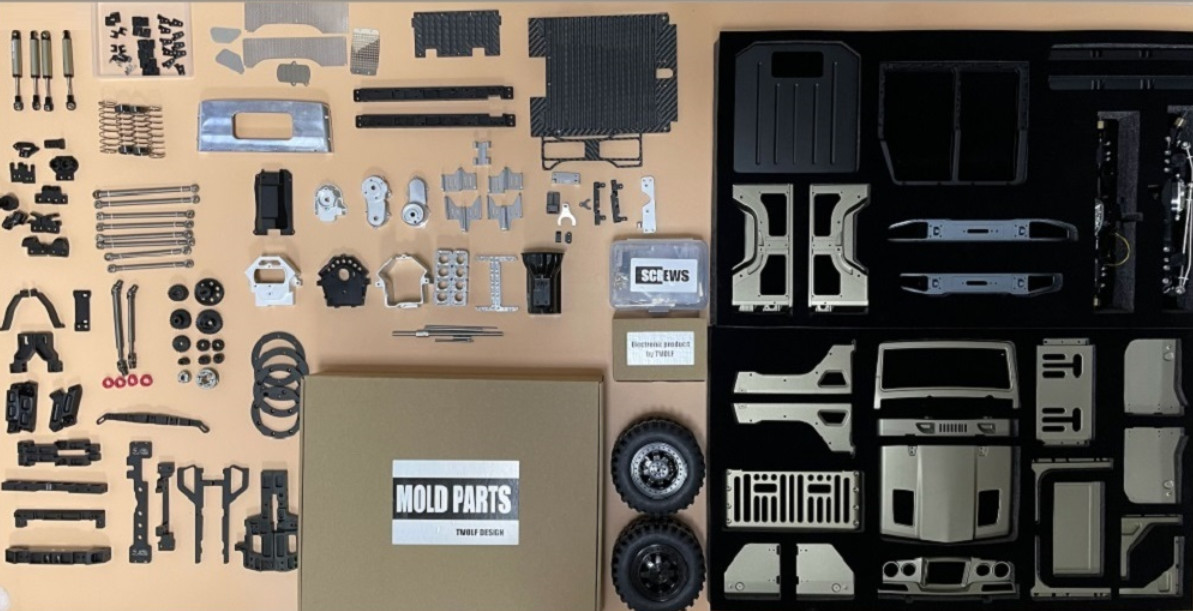

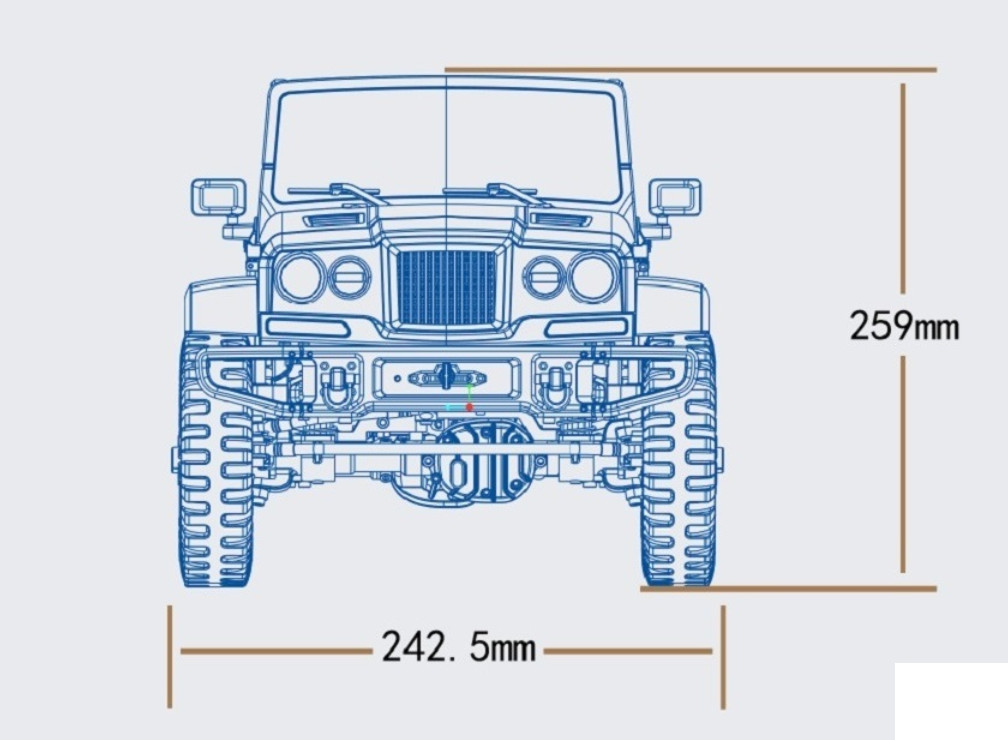

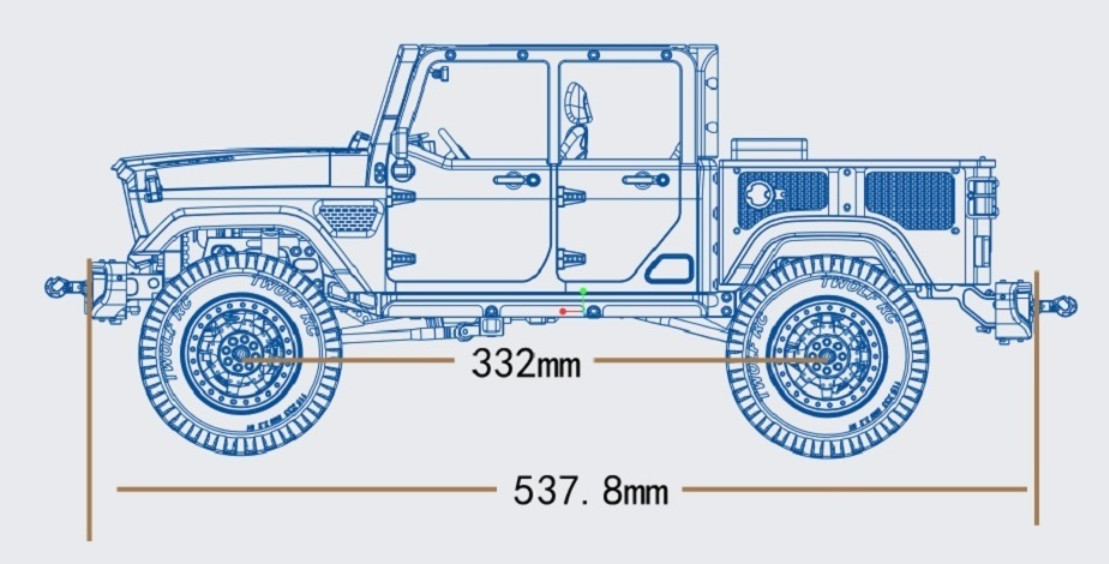

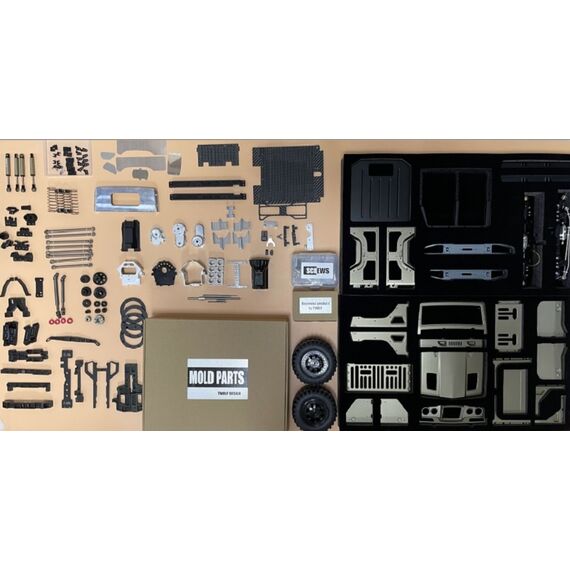

Assembly type 1:10 full metal KIT (excluding electronic equipment) Size length-width-height 537.8*242.5*259mm

Weight 5.85kg (excluding OP and electronic equipment lamp set)

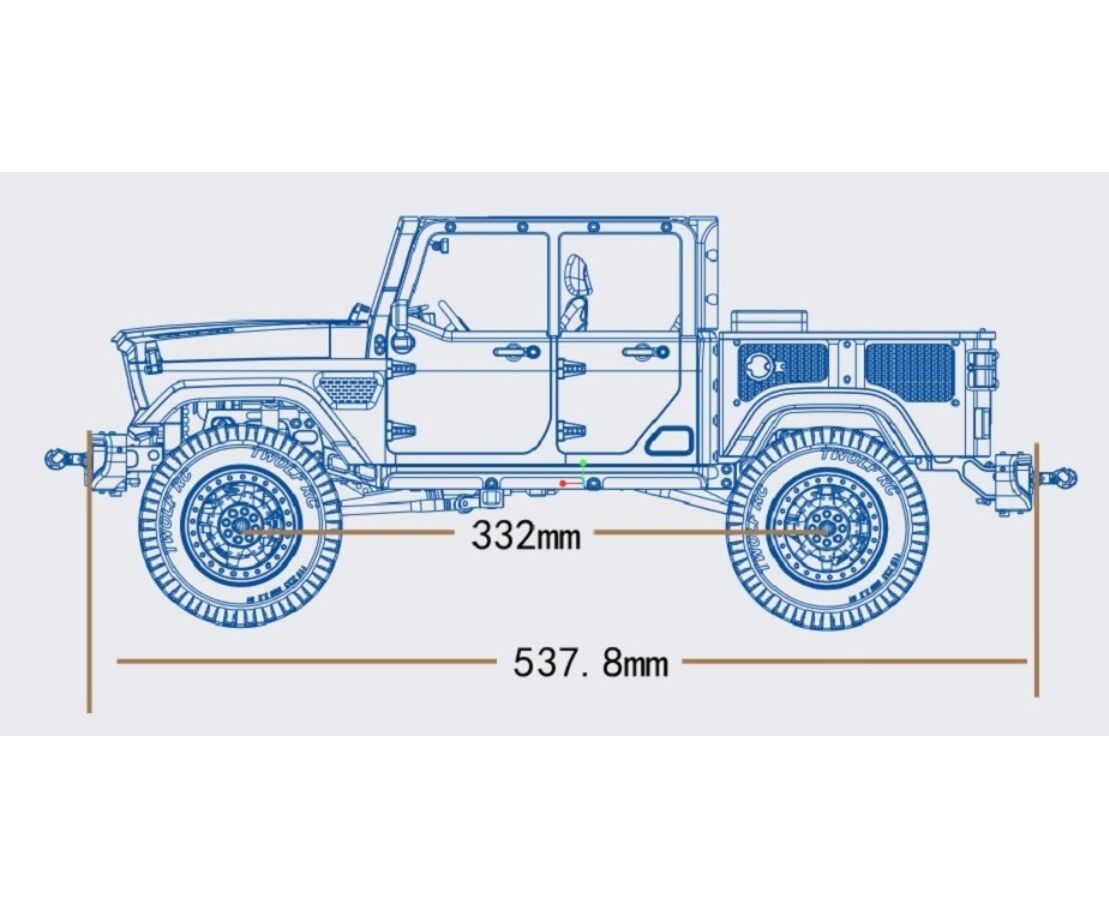

Wheelbase 332mm

Ground clearance 75mm (minimum distance) Approach angle 49.5 degrees

Departure angle 35 degrees

Drive mode: electric drive (the original car is compatible with 5200 mAh battery)

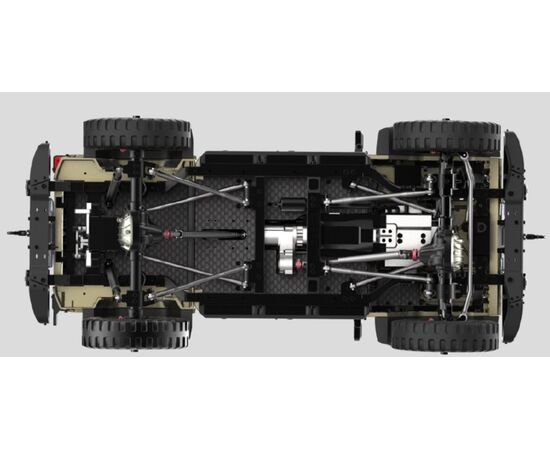

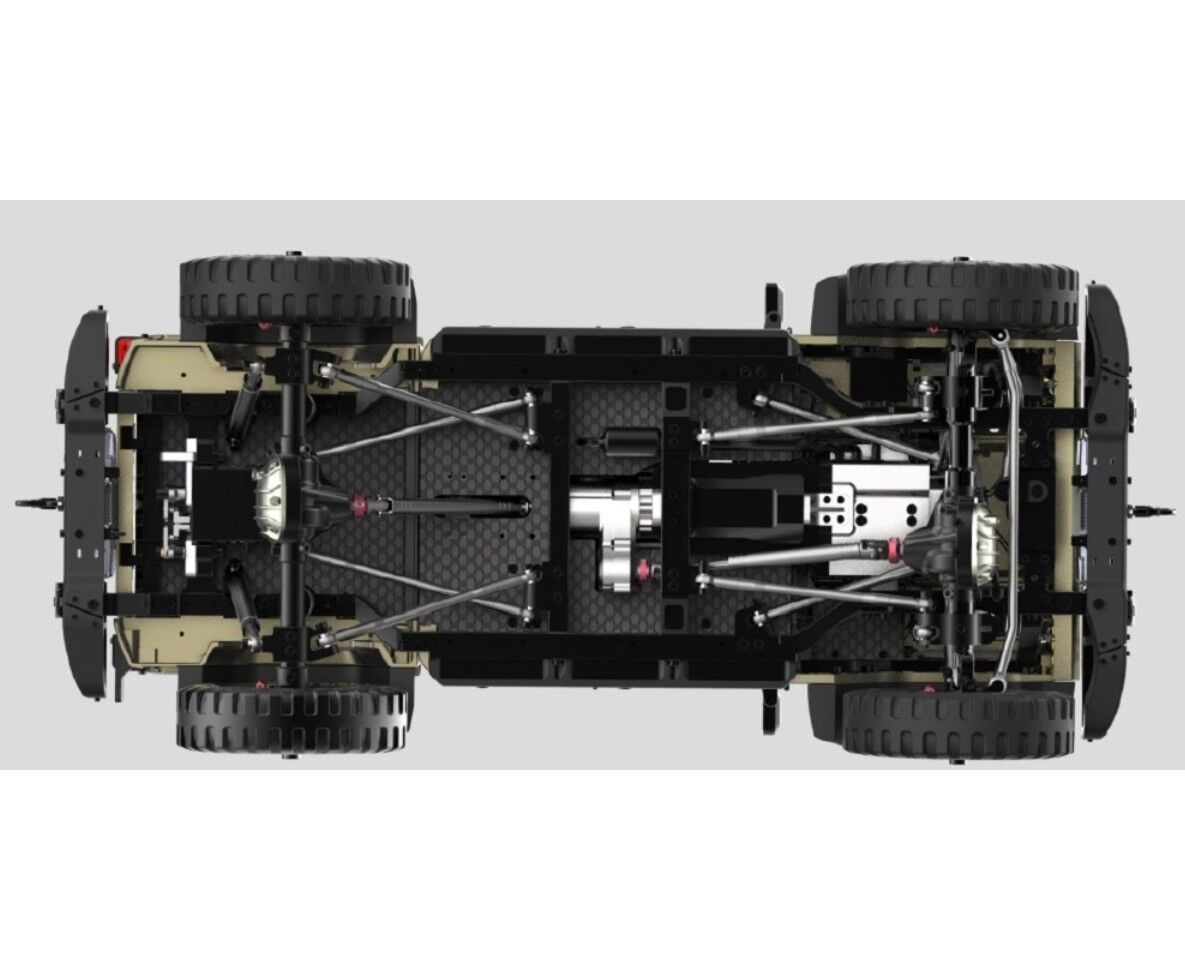

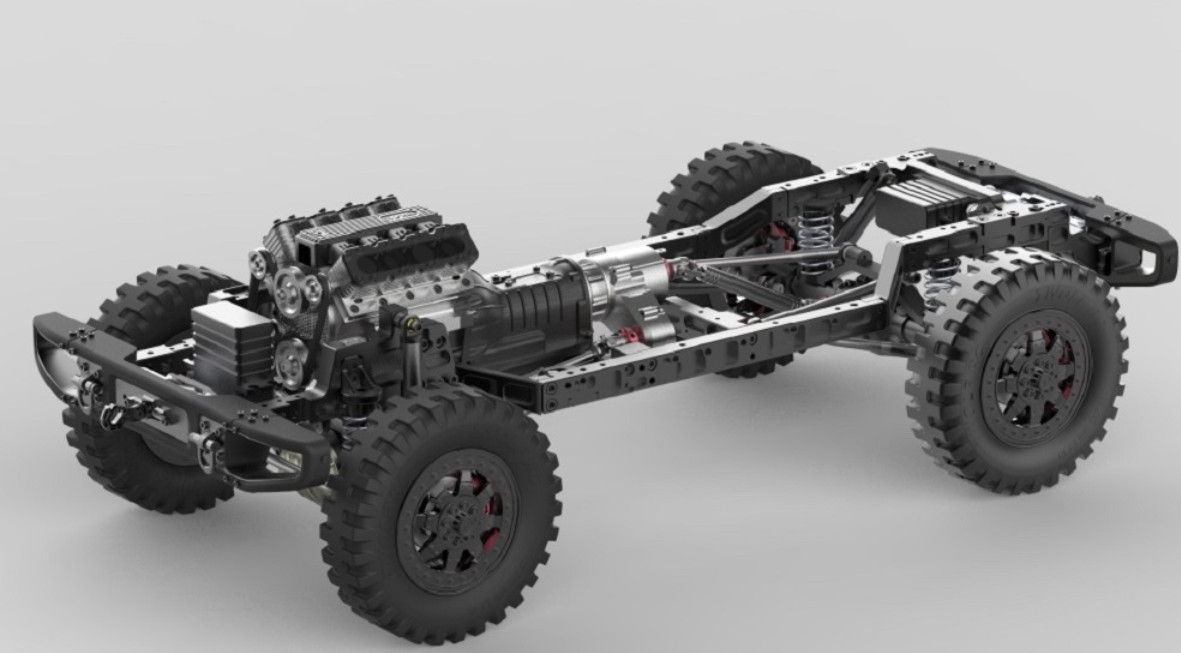

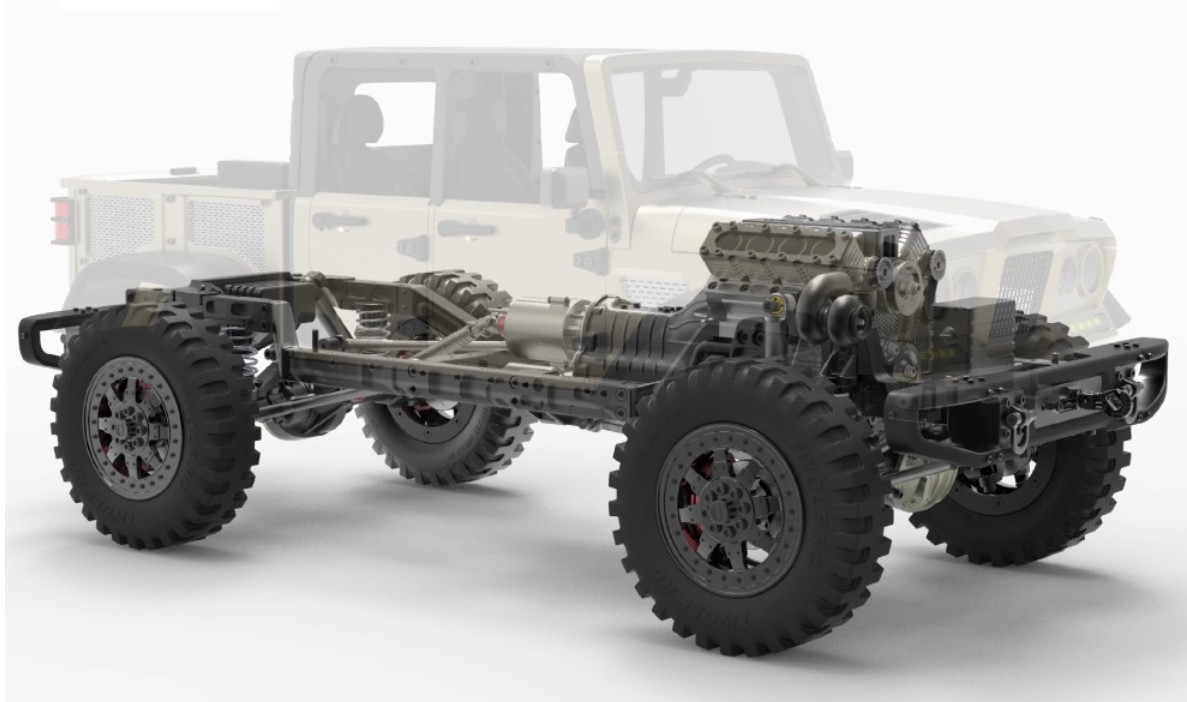

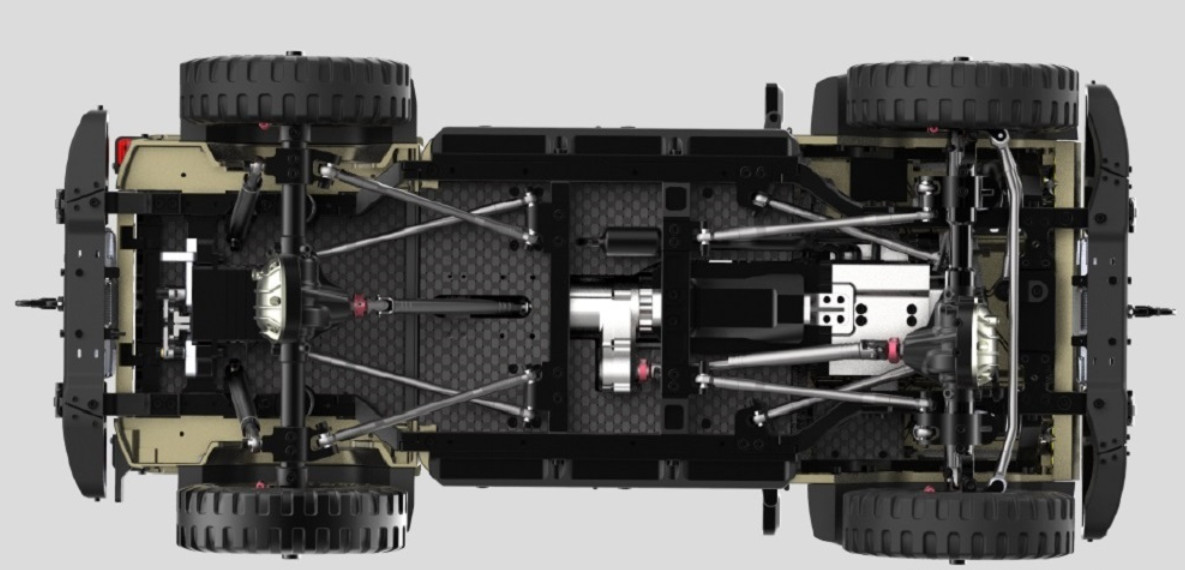

Suspension type: Straight bridge 8-link, double shock absorber effect
Four-wheel drive mode Time-sharing four-wheel drive
Pavement road (original tires), there will be OP climbing tires later

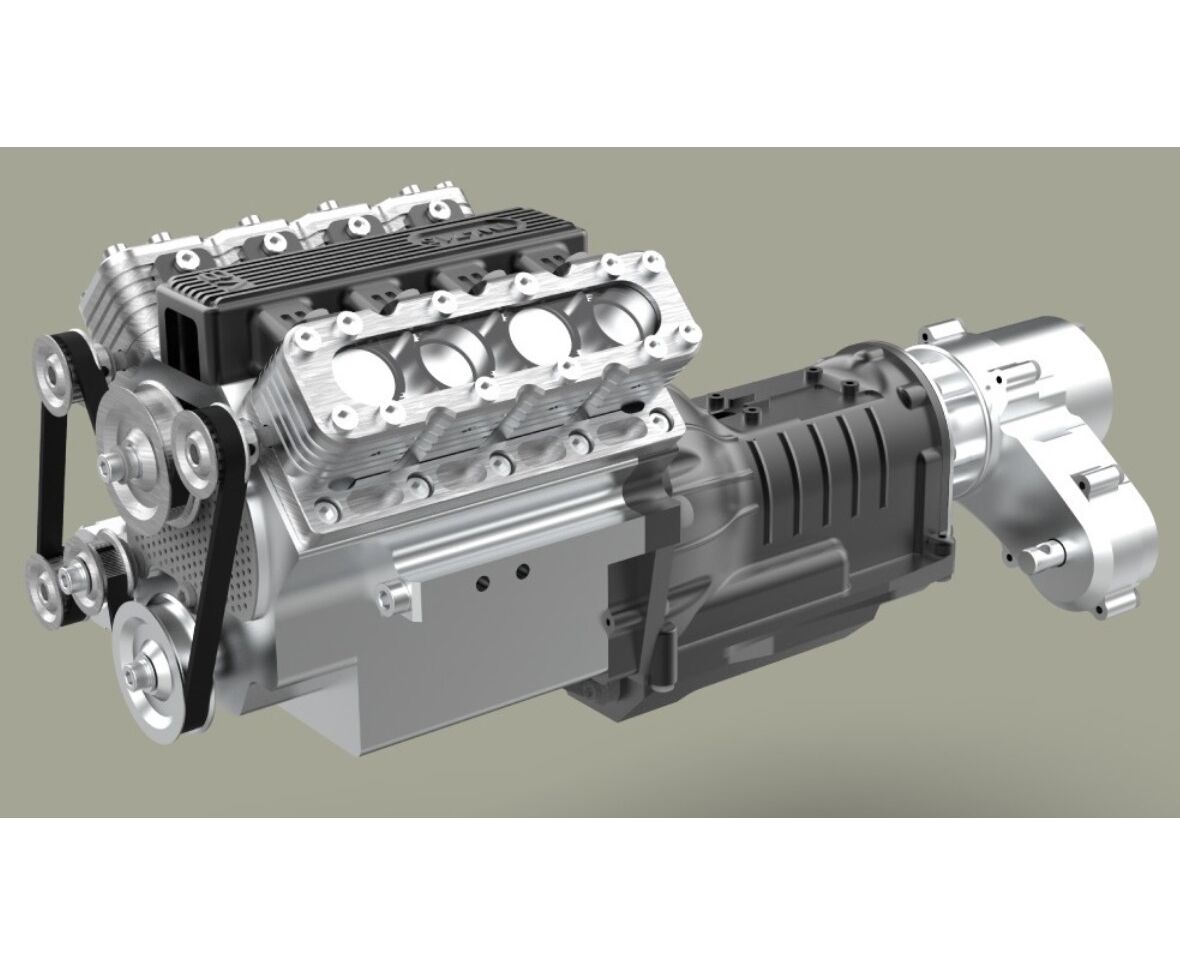

Model function introduction Gearbox position 1N2 (low gear, high gear, neutral)
2/4WD (rear axle power output)
Synchronous differential between front and rear axles
Suggestions for electronic equipment (not included), OP will be calculated separately
Motor ESC Recommended 540 motor or HH 550 PRO 27T (the length of the motor should be less than 60MM)
Gearbox 9g steering gear (1)
2/4WD 9g steering gear (1)
Steering wheel electronic steering 9g steering gear (1)
Front wheel steering 1 standard steering gear (around 50KG is recommended)
1 standard steering gear (recommended about 20KG)
Packing size Outer packing size Outer packing size: 630*380*223mm
Inner packing size Inner packing size: 605*360*200mm

Der Bausatz ist sehr anspruchsvoll und vor allem für erfahrene Modellbauer zu empfehlen.

General
Massstab:
1:10
Einsatz:
  • Crawler/Scaler
Anspruch:
  • Geübte Piloten
Fertigungsgrad:
Bausatz
Max. Geschwindigkeit:
20-30 km/h
Hersteller:
Diverse
